Components and Components Location: Component

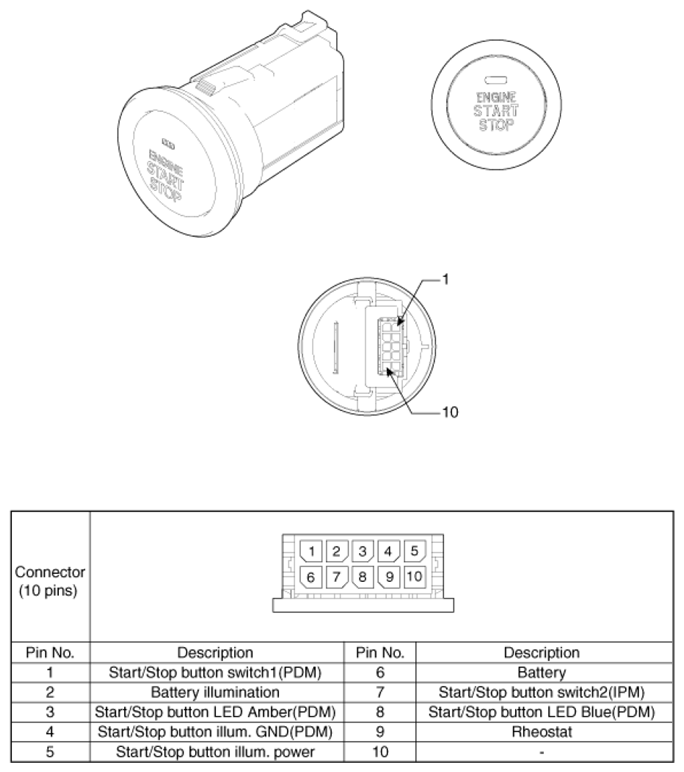

Fig 1: Startstop Button Components Location
G07313272Courtesy of HYUNDAI MOTOR CO.
