Components Location

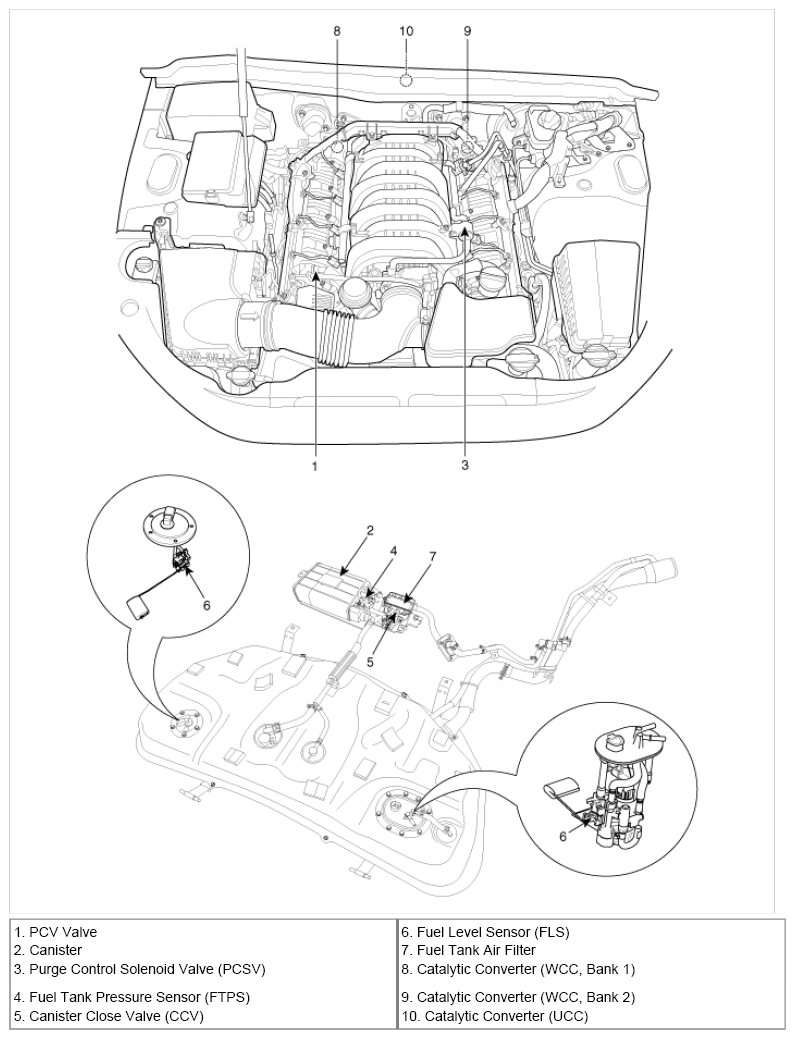

Fig 1: Identifying Emission Control System Components Location (1 Of 2)
G07309143Courtesy of HYUNDAI MOTOR CO.

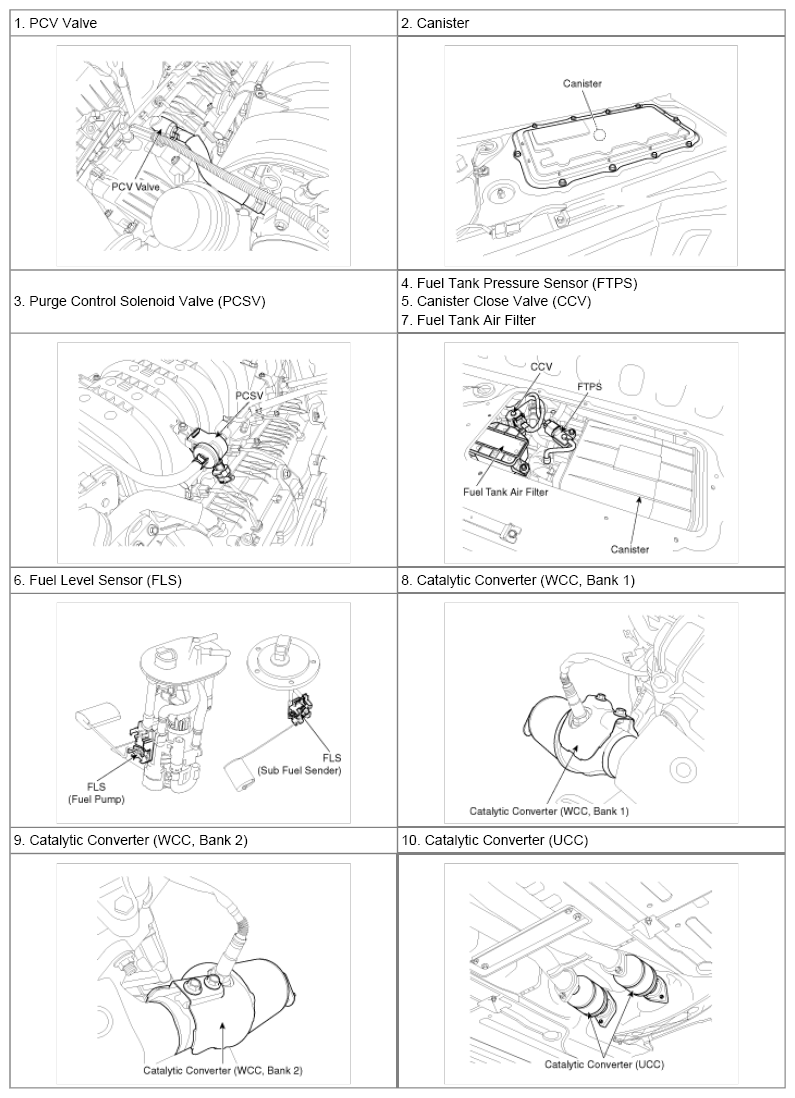

Fig 2: Identifying Emission Control System Components Location (2 Of 2)
G07309144Courtesy of HYUNDAI MOTOR CO.
