Components and Components Location: Components

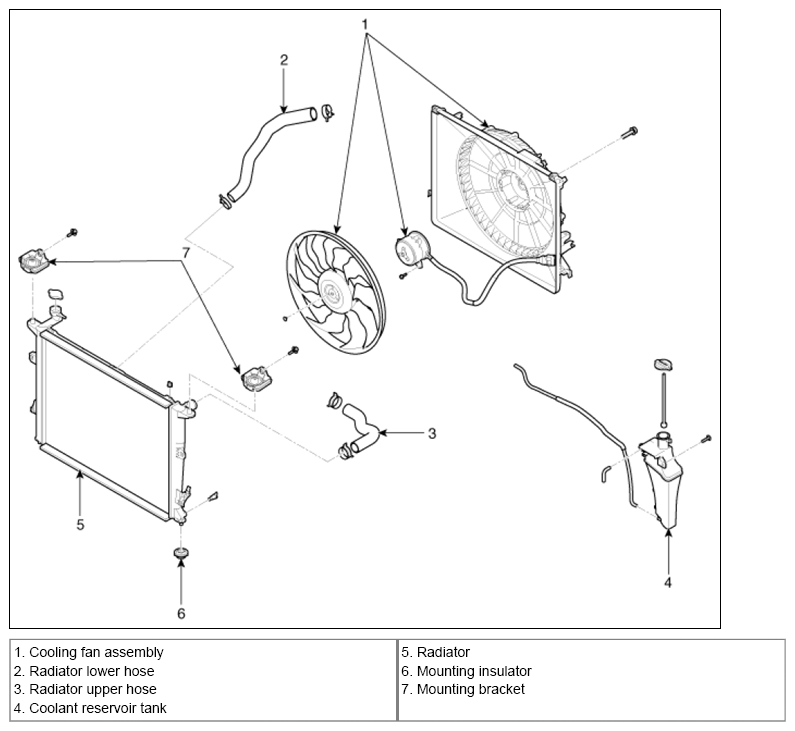

Fig 1: Exploded View Of Radiator And Components
G07308887Courtesy of HYUNDAI MOTOR CO.
