Components and Components Location: Components

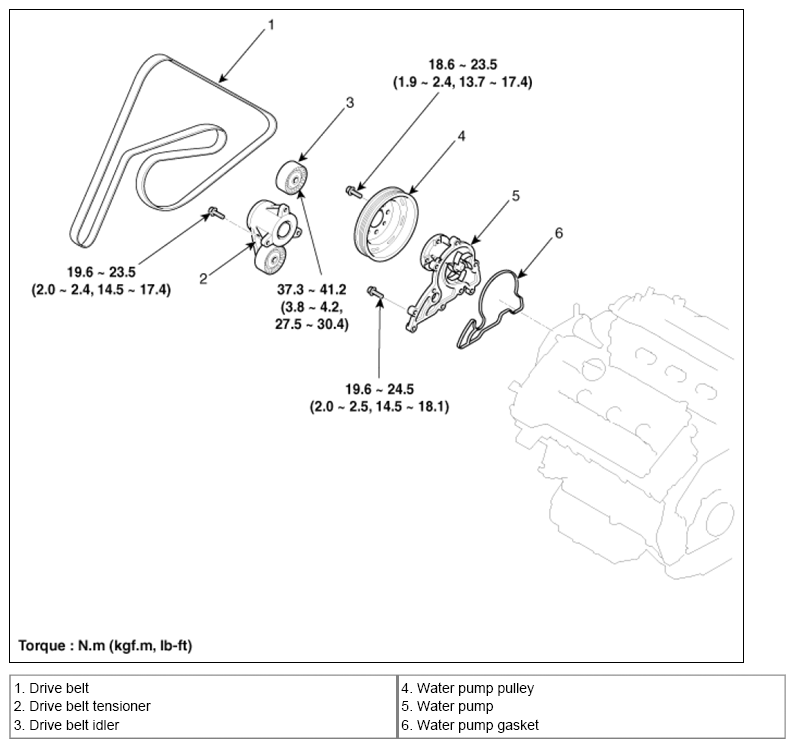

Fig 1: Exploded View Of Water Pump And Components With Torque Specifications
G07308899Courtesy of HYUNDAI MOTOR CO.
