Components and Components Location: Components

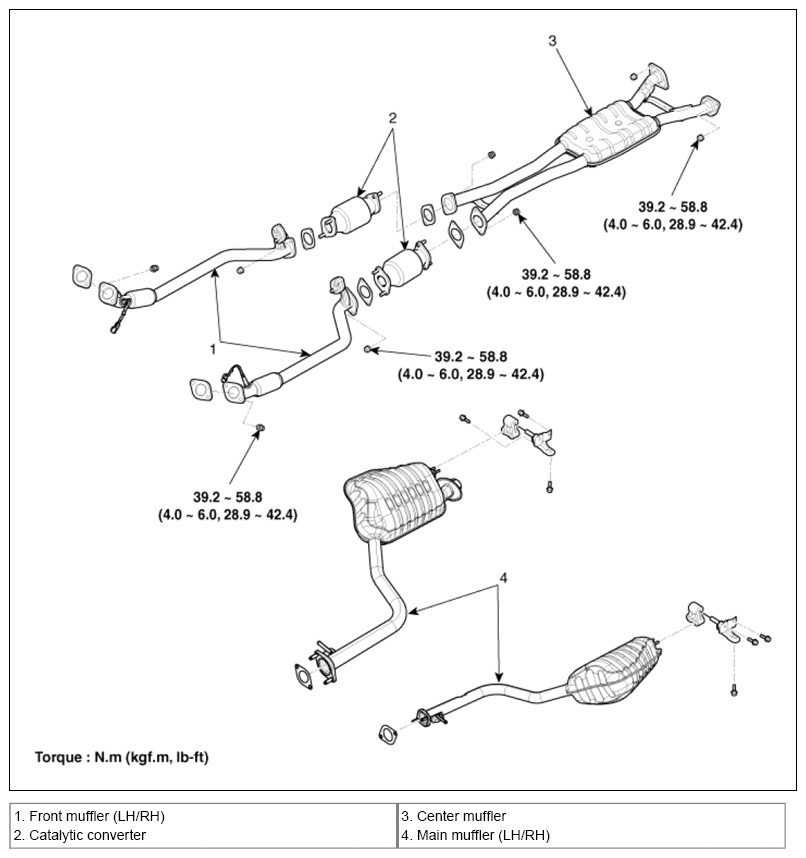

Fig 1: Exploded View Of Muffler And Catalytic Converter With Torque Specifications
G07309006Courtesy of HYUNDAI MOTOR CO.
