Components and Components Location: Components

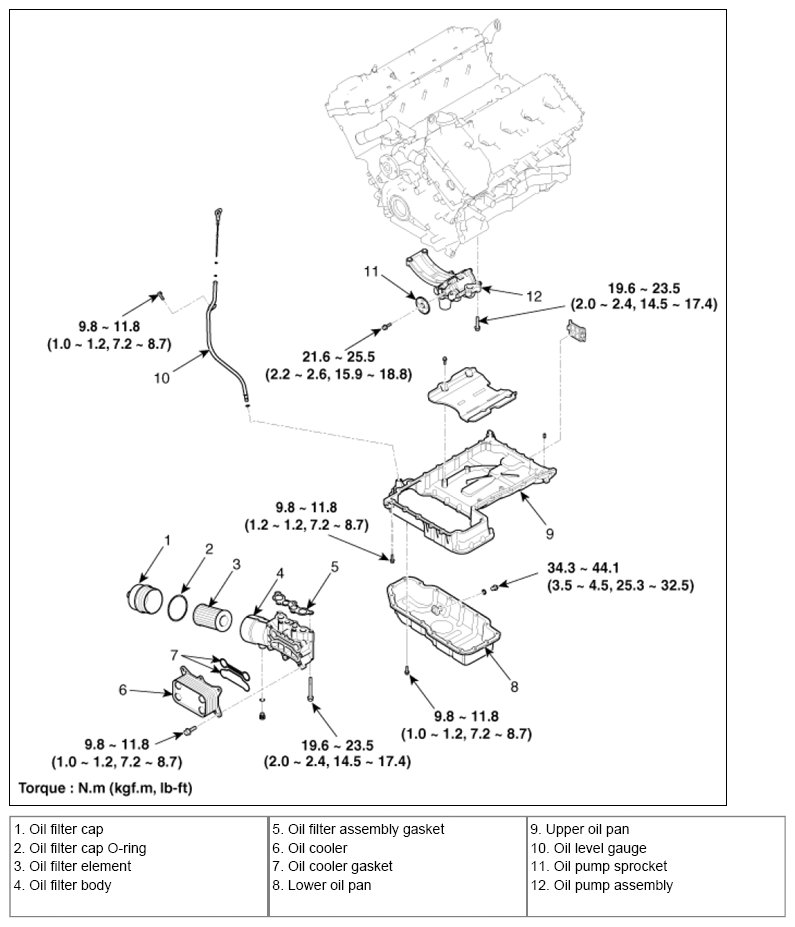

Fig 1: Exploded View Of Oil Pump And Components With Torque Specifications
G07308940Courtesy of HYUNDAI MOTOR CO.
