Repair Procedures: Removal

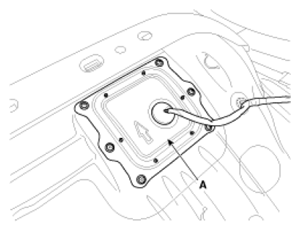

  1. Remove the service cover of the sub fuel sender (A).
    Fig 1: Identifying Sub Fuel Sender
    G07311590Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the sub fuel sender connector (A).
    Fig 2: Identifying Sub Fuel Sender Connector
    G07311591Courtesy of HYUNDAI MOTOR CO.
  3. Remove the sub fuel sender from the fuel tank after removing the installation bolts (B).
    Fig 3: Identifying Sub Fuel Sensor And Installation Bolts
    G07311592Courtesy of HYUNDAI MOTOR CO.
