Components and Components Location: Components

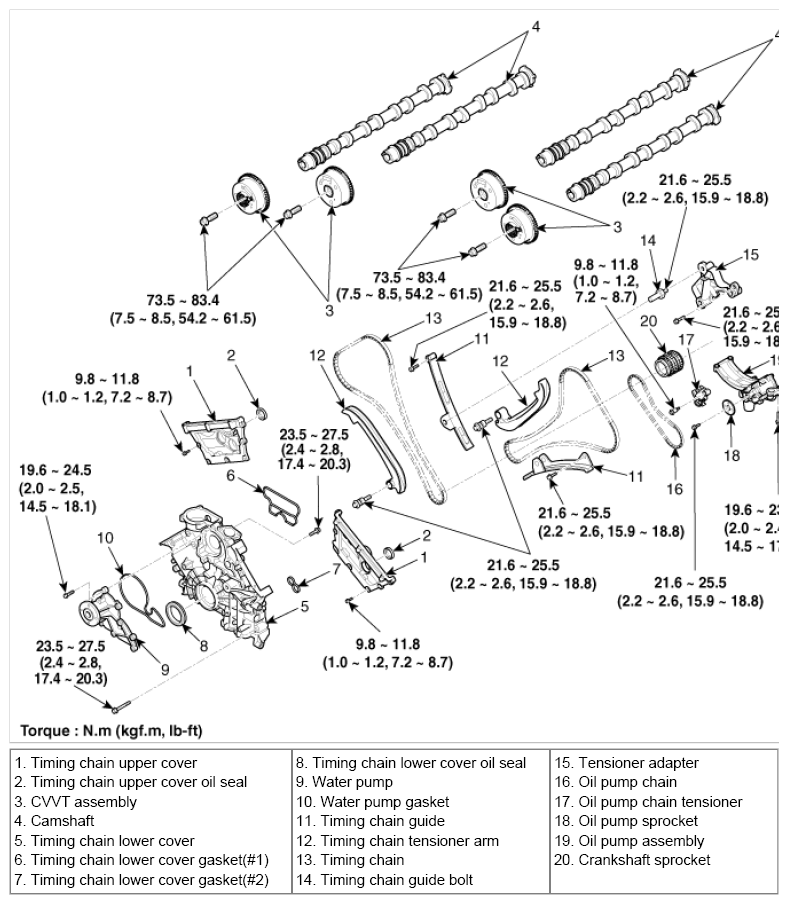

Fig 1: Exploded View Of Timing System
G07308578Courtesy of HYUNDAI MOTOR CO.
