Repair Procedures: Removal: [Rear]

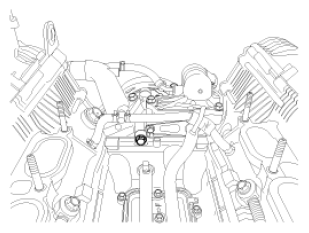

Fig 1: Identifying Timing Chain Lower Cover (Rear)

Courtesy of HYUNDAI MOTOR CO.

1. 18. Remove the O-ring (A) from the timing chain cover.
   Fig 2: Identifying O-Ring Of Timing Chain Cover

   Courtesy of HYUNDAI MOTOR CO.
2. 19. Remove the timing chain tensioner arm (A) and the timing chain guide (B) and then remove the timing chain.
   Fig 3: Identifying Timing Chain Tensioner Arm

   Courtesy of HYUNDAI MOTOR CO.
   Fig 4: Identifying Timing Chain Guide

   Courtesy of HYUNDAI MOTOR CO.
3. 20. Insert a set pin after compressing the oil pump chain tensioner (A) and then remove the oil pump sprocket (B) and chain (C).
   Fig 5: Identifying Oil Pump Chain Tensioner, Oil Pump Sprocket And Chain

   Courtesy of HYUNDAI MOTOR CO.

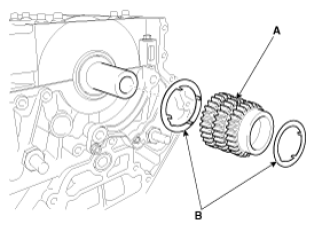

4. 21. Remove the crankshaft sprocket (A) and friction plates (B).
   Fig 6: Identifying Crankshaft Sprocket And Friction Plates

   Courtesy of HYUNDAI MOTOR CO.
5. 22. Remove the tensioner adapter (A) and the timing chain guide bolts (B).
   Fig 7: Identifying Tensioner Adapter And Timing Chain Guide Bolts

   Courtesy of HYUNDAI MOTOR CO.
