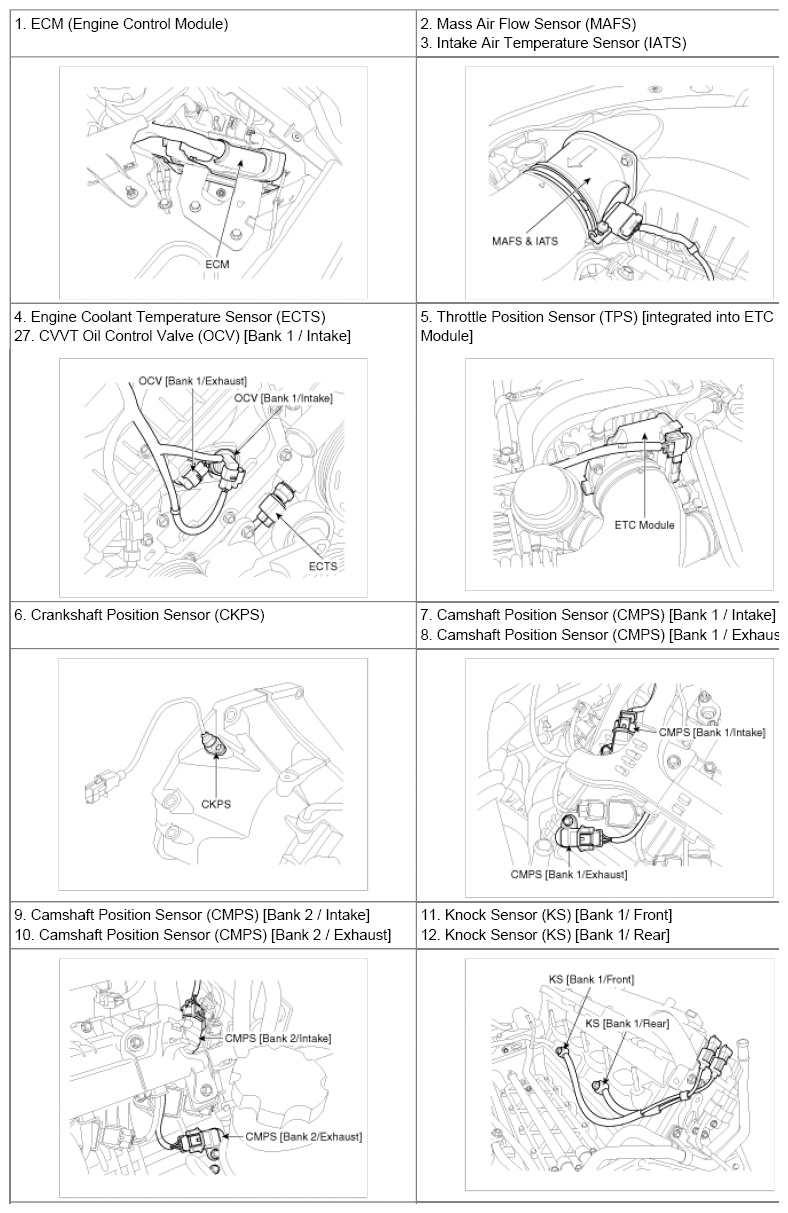

Fig 1: Identifying Engine Control System Components Location (1 Of 5)
Courtesy of HYUNDAI MOTOR CO.

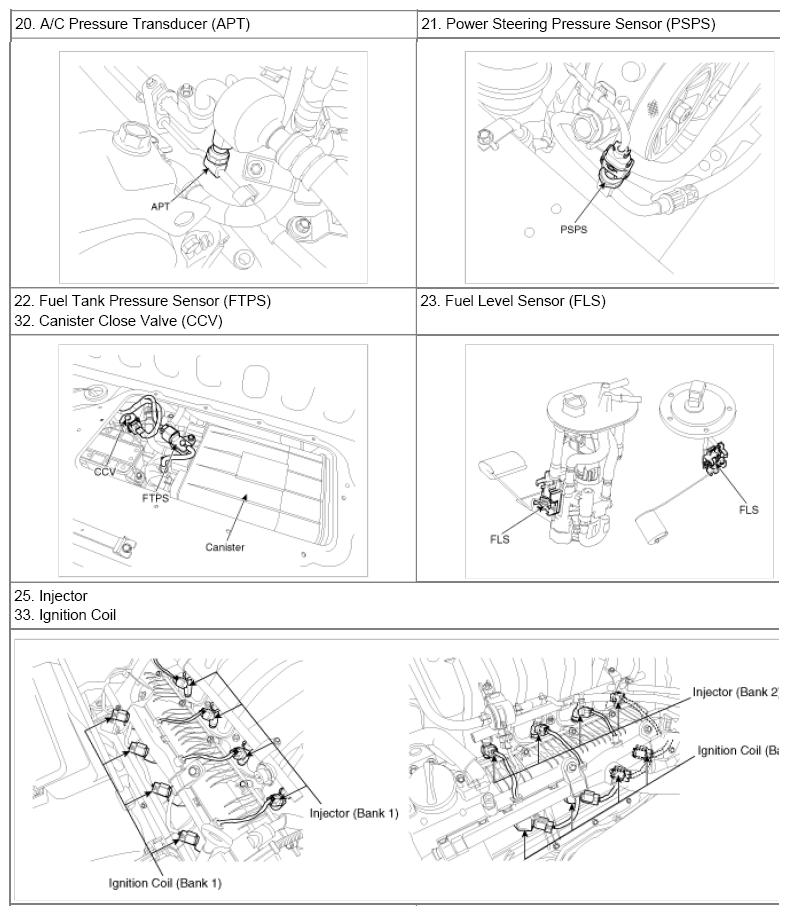

Fig 2: Identifying Engine Control System Components Location (2 Of 5)
Courtesy of HYUNDAI MOTOR CO.

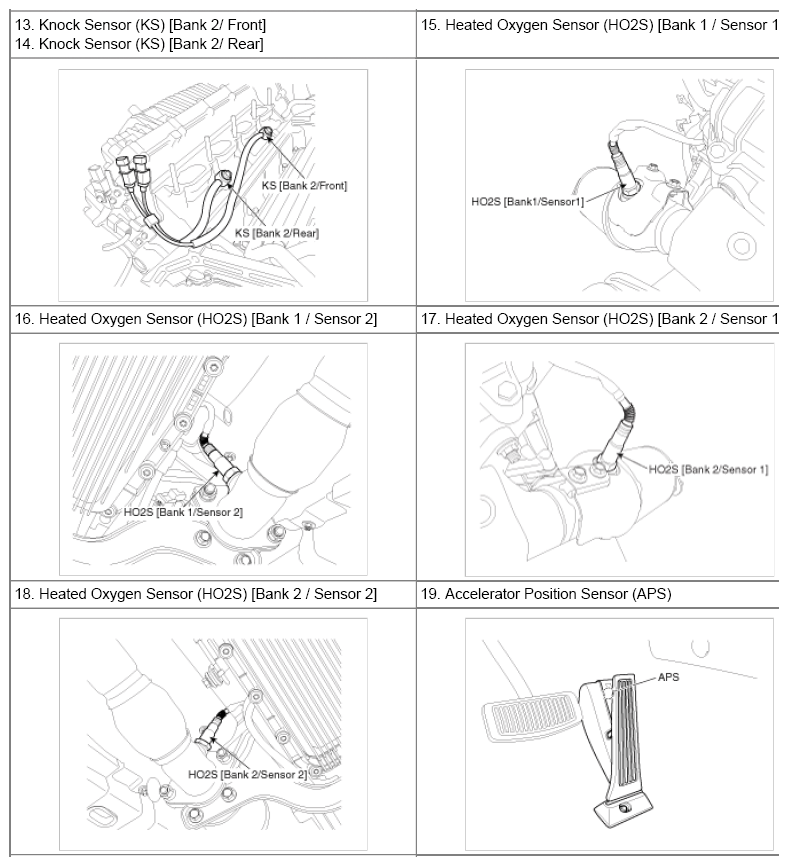

Fig 3: Identifying Engine Control System Components Location (3 Of 5)
Courtesy of HYUNDAI MOTOR CO.

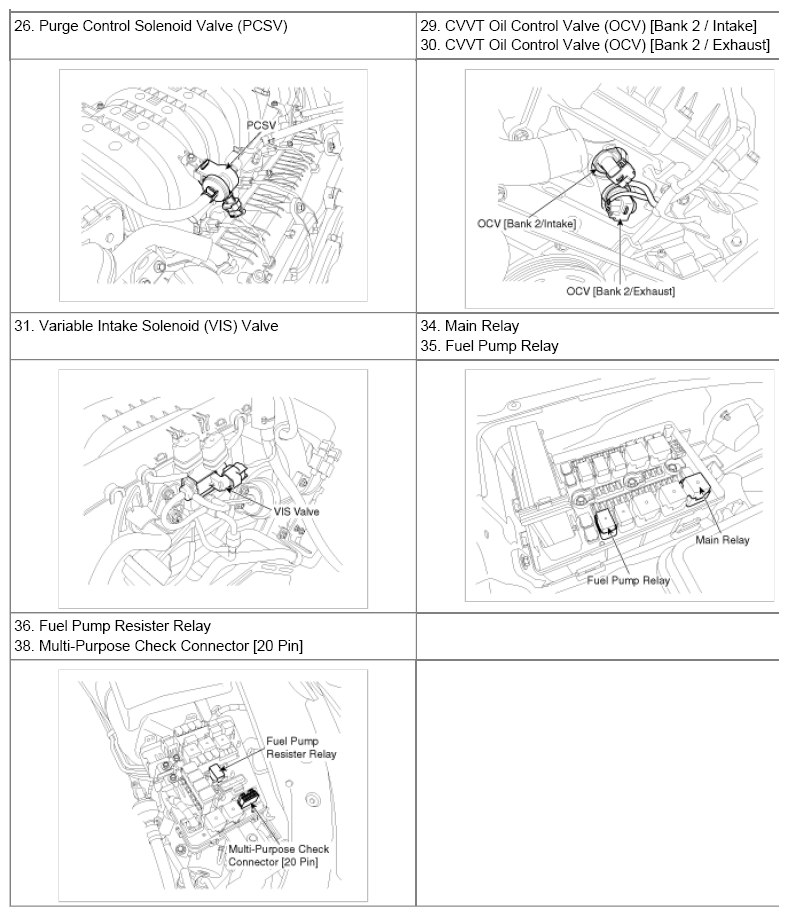

Fig 4: Identifying Engine Control System Components Location (4 Of 5)
Courtesy of HYUNDAI MOTOR CO.

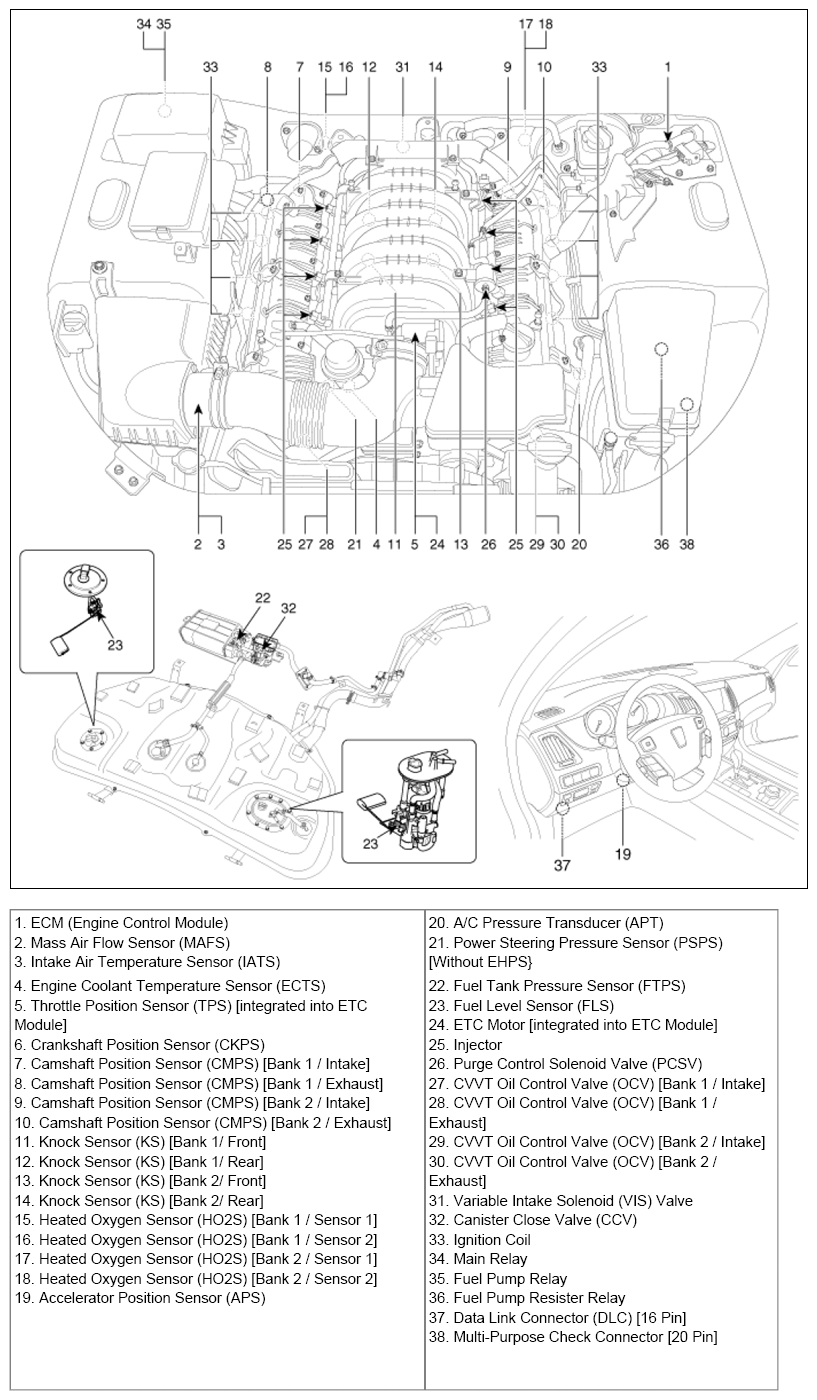

Fig 5: Identifying Engine Control System Components Location (5 Of 5)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
