Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the crankshaft position sensor connector (A).

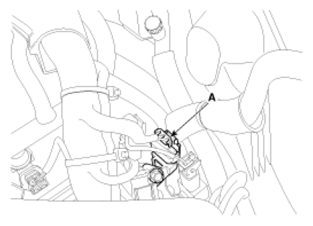

    Fig 1: Identifying Crankshaft Position Sensor Connector
    G07311518Courtesy of HYUNDAI MOTOR CO.
  3. Remove the installation bolt (B), and then vertically remove the sensor from the transaxle housing.
    Fig 2: Identifying Installation Bolt
    G07311519Courtesy of HYUNDAI MOTOR CO.
