Engine Control Module (ECM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

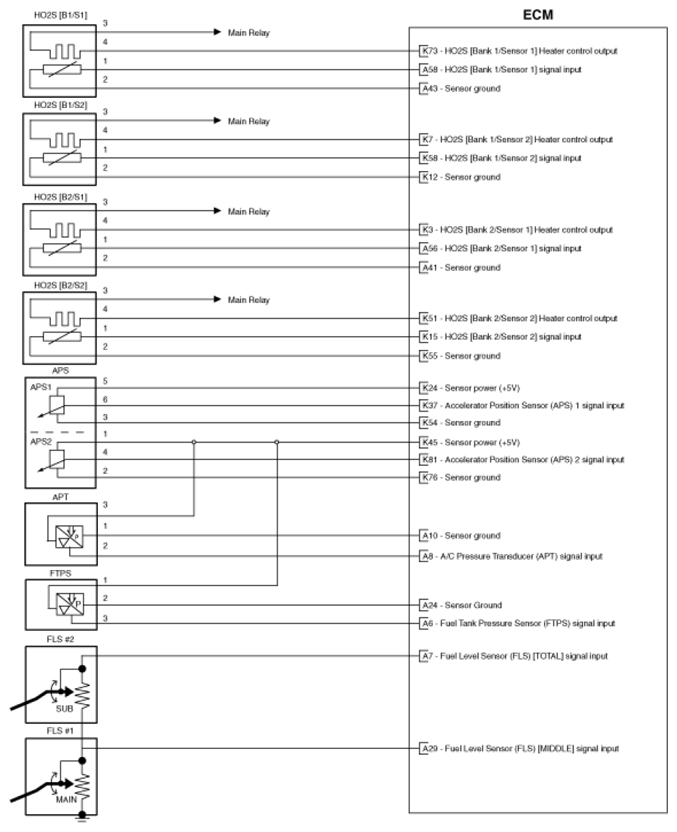

Fig 1: Engine Control System Circuit Diagram (1 Of 5)
Courtesy of HYUNDAI MOTOR CO.

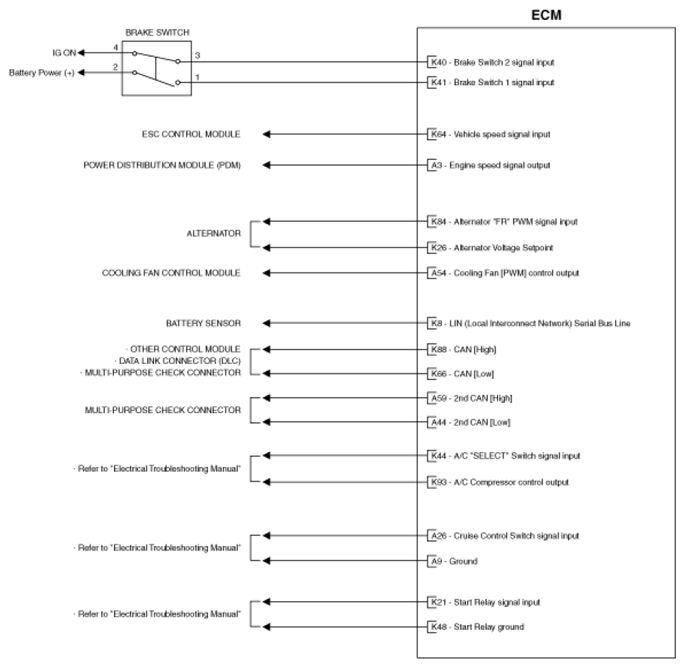

Fig 2: Engine Control System Circuit Diagram (2 Of 5)
Courtesy of HYUNDAI MOTOR CO.

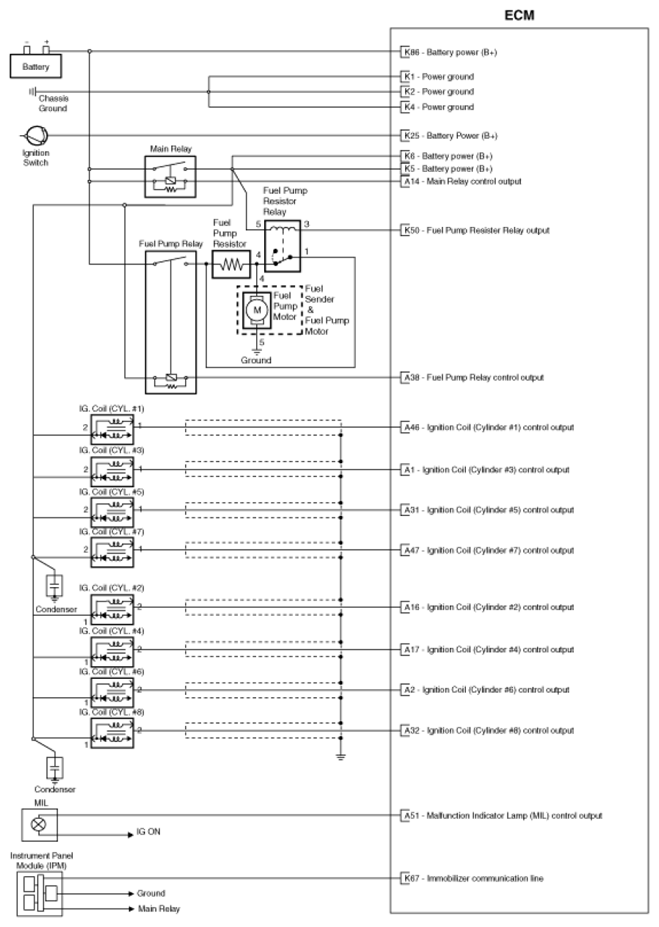

Fig 3: Engine Control System Circuit Diagram (3 Of 5)
Courtesy of HYUNDAI MOTOR CO.

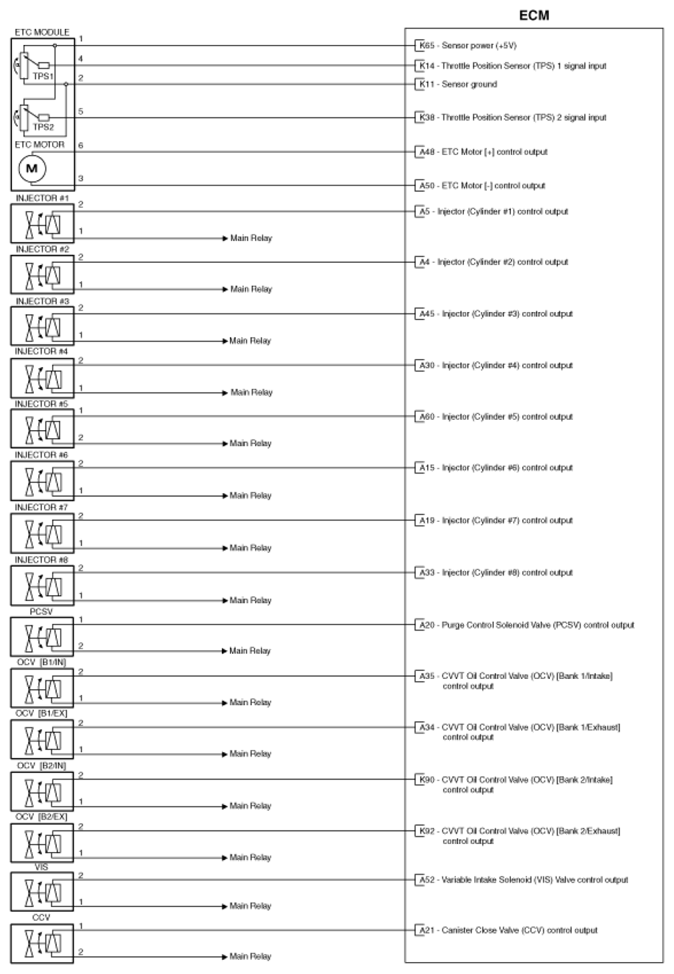

Fig 4: Engine Control System Circuit Diagram (4 Of 5)
Courtesy of HYUNDAI MOTOR CO.

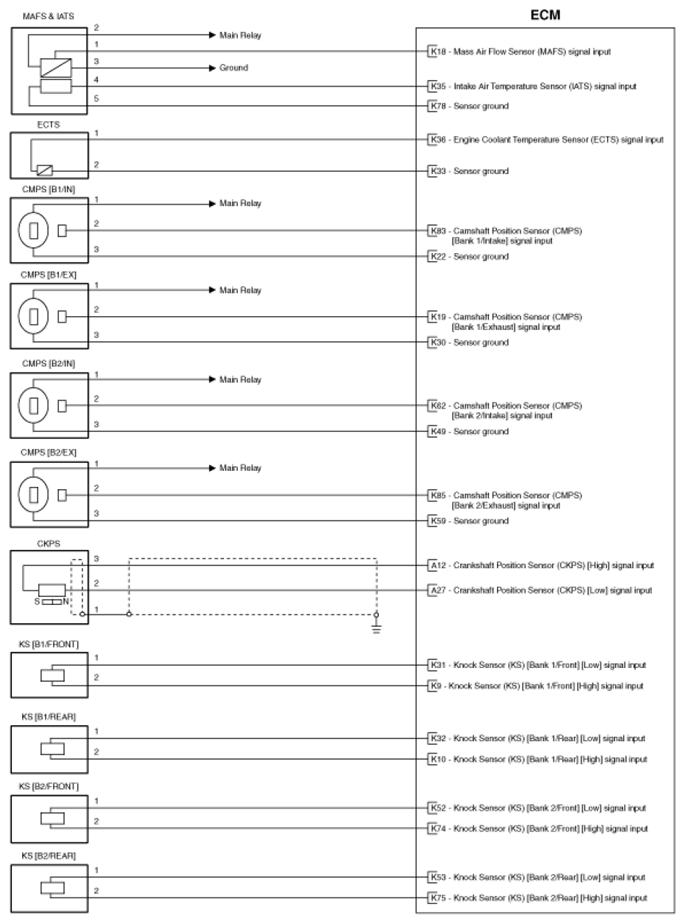

Fig 5: Engine Control System Circuit Diagram (5 Of 5)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
