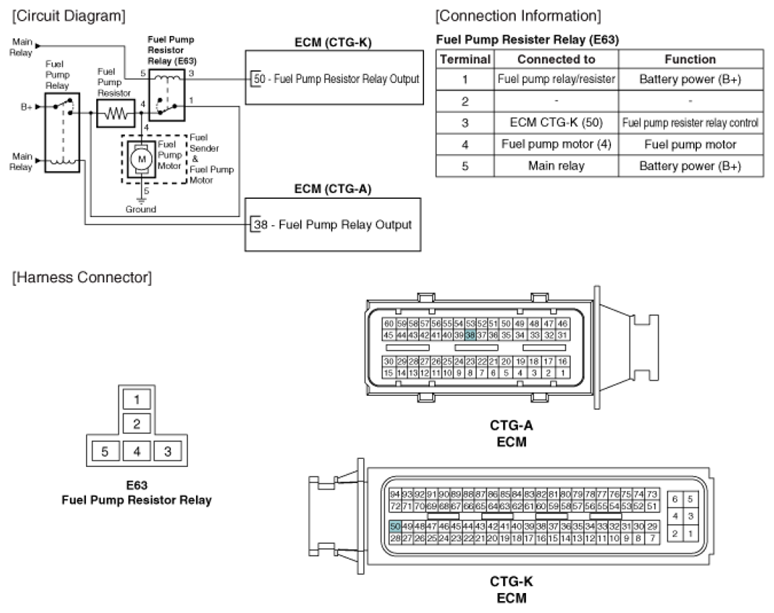

Home › Hyundai › 2011 › Equus Signature › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System Components › Fuel Pump Resister › Schematic Diagrams › Circuit Diagram
