Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System Components
›
Fuel Tank Pressure Sensor (FTPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

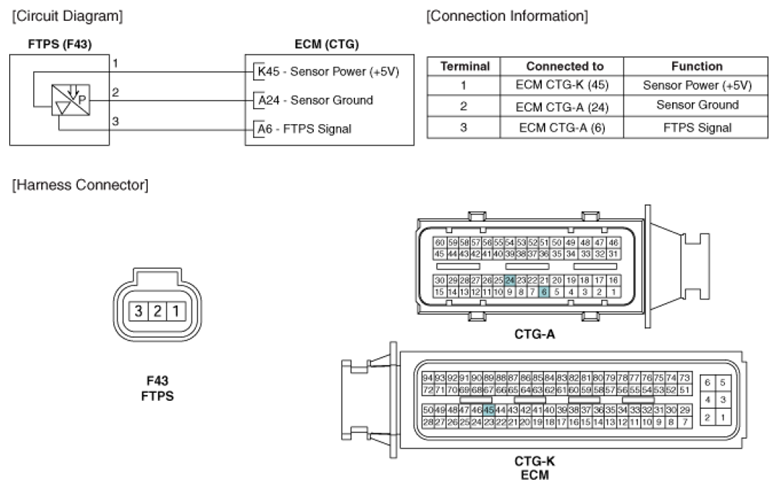

Fig 1: Fuel Tank Pressure Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
