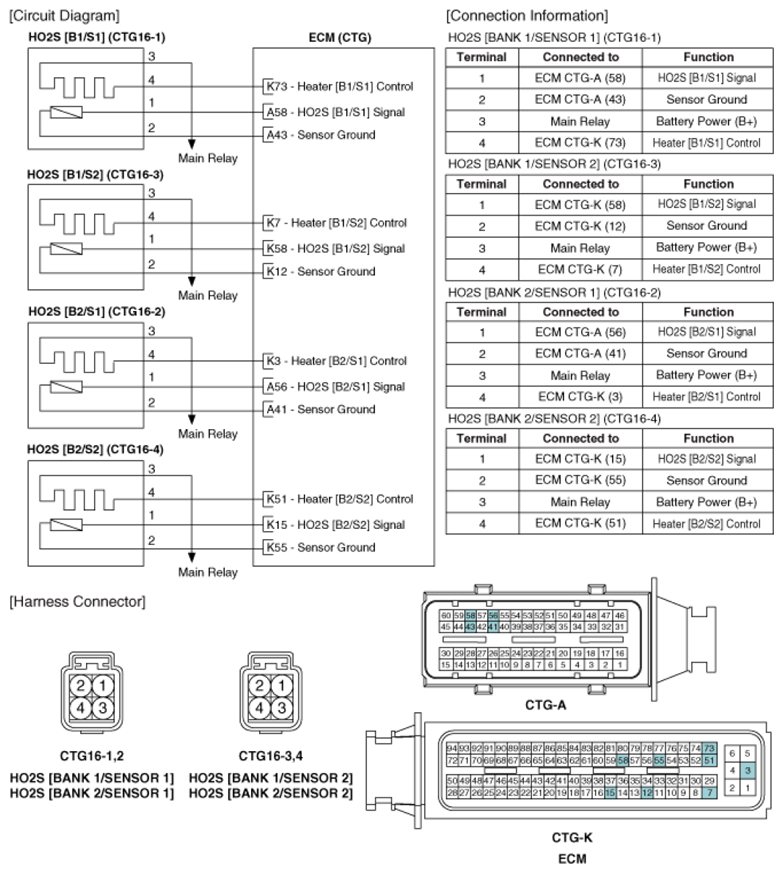

Home › Hyundai › 2011 › Equus Signature › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System Components › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram
