Hyundai
›
2011
›
Equus Signature
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System Components
›
Intake Air Temperature Sensor (IATS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

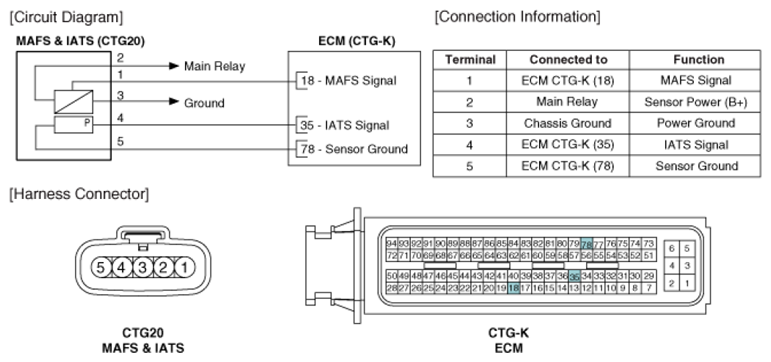

Fig 1: Intake Air Temperature Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
