Hyundai
›
2011
›
Equus Signature
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System Components
›
Mass Air Flow Sensor (MAFS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

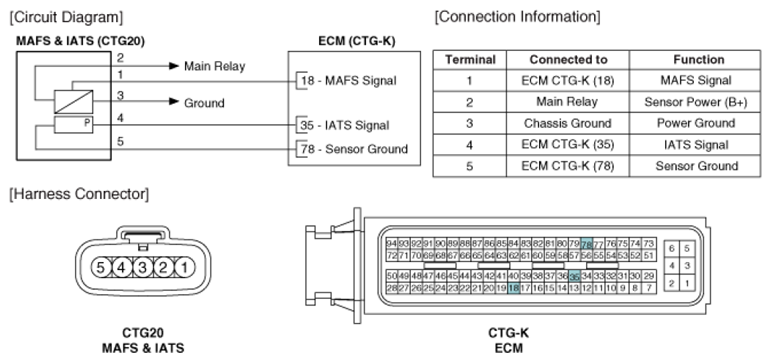

Fig 1: Mass Air Flow Sensor Circuit Diagram
