Engine Control System Diagnosis (1 Of 3)
›
DTC P0130: O2 Sensor Circuit (Bank 1/Sensor 1)
›
General Information
›
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram

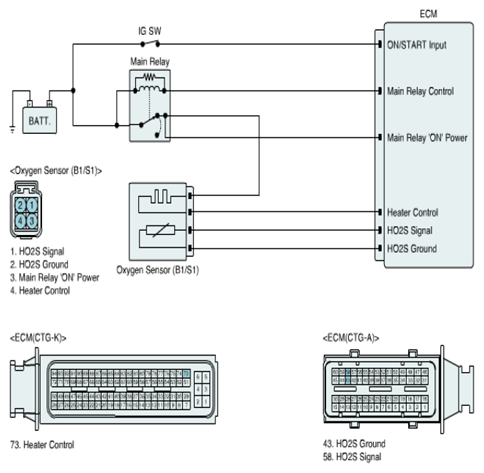

Fig 1: Identifying O2 Sensor Diagnostic Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
