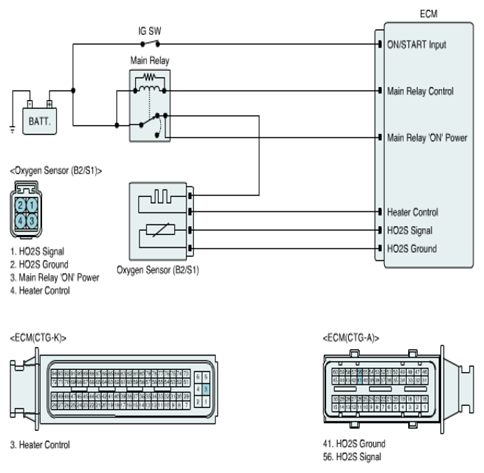

Home › Hyundai › 2011 › Equus Signature › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (1 Of 3) › DTC P0150: O2 Sensor Circuit (Bank 2/Sensor 1) › General Information › Diagnostic Circuit Diagram
