Engine Control System Diagnosis (1 Of 3)
›
DTC P0156: O2 Sensor Circuit (Bank 2/Sensor 2)
›
General Information
›
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram

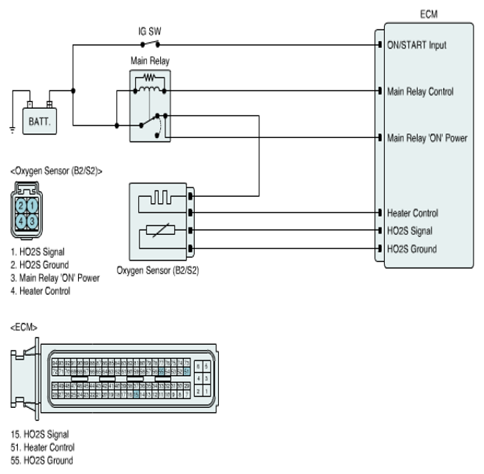

Fig 1: O2 Sensor Diagnostic Circuit Diagram (Bank 2/Sensor 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
