Components and Components Location: Components

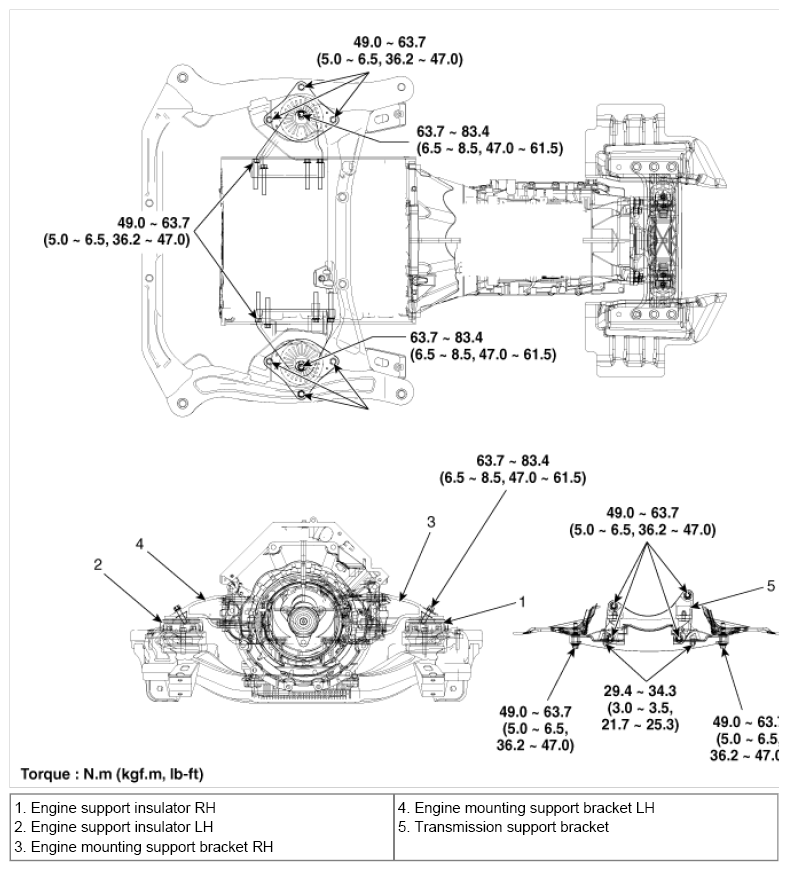

Fig 1: Engine And Transmission Assembly Replacement Components With Torque Specifications
G07308548Courtesy of HYUNDAI MOTOR CO.
