IPM Diagnosis With GDS

It will be able to diagnose defects of IPM with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
Select model and "IPM".
Select the module to check.
Select "Input/output monitoring", if you will check current data of body network system. It provides input/output status of each module.

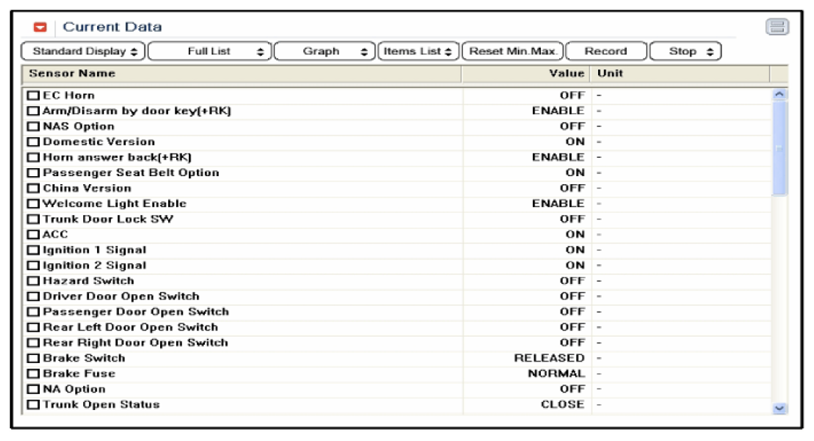

Fig 1: Screen Display - Current Data
Courtesy of HYUNDAI MOTOR CO.
If you will check each module data operation forcefully, select "Actuation test".

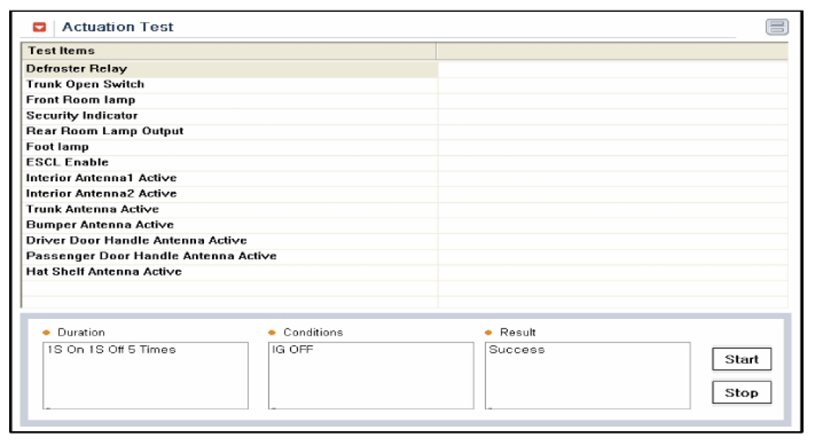

Fig 2: Screen Display - Actuation Test
Courtesy of HYUNDAI MOTOR CO.
To check the DTC of the each module, select "DIAGNOSTIC TROUBLE CODES"

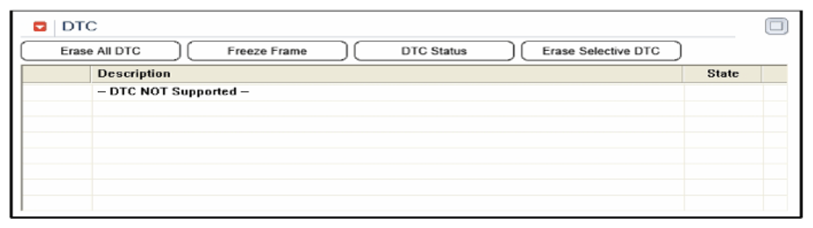

Fig 3: Screen Display - DTC Not Supported
Courtesy of HYUNDAI MOTOR CO.
