Components and Components Location: Components

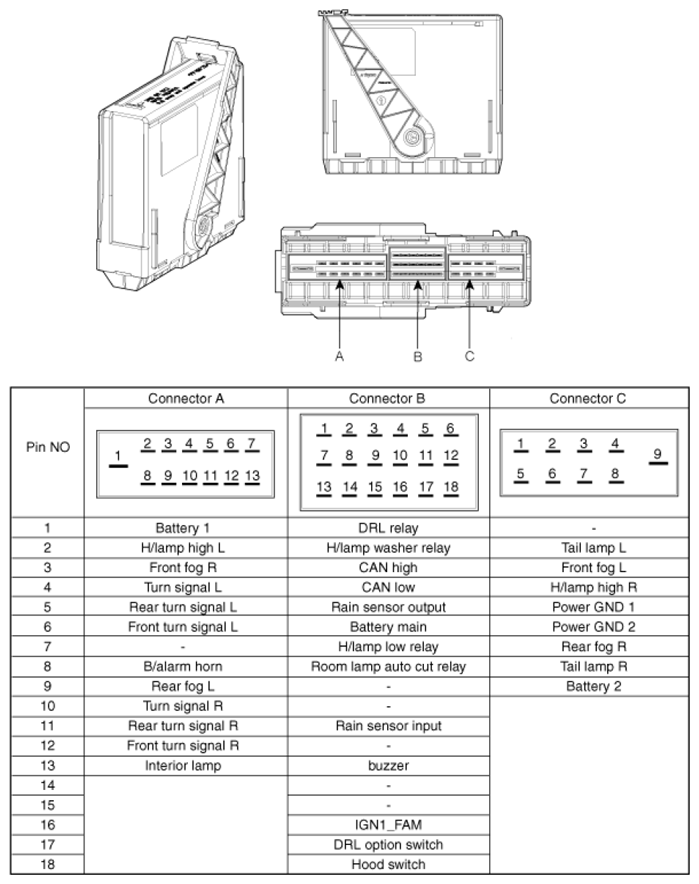

Fig 1: Identifying Front Area Module Components Location
G07313333Courtesy of HYUNDAI MOTOR CO.
