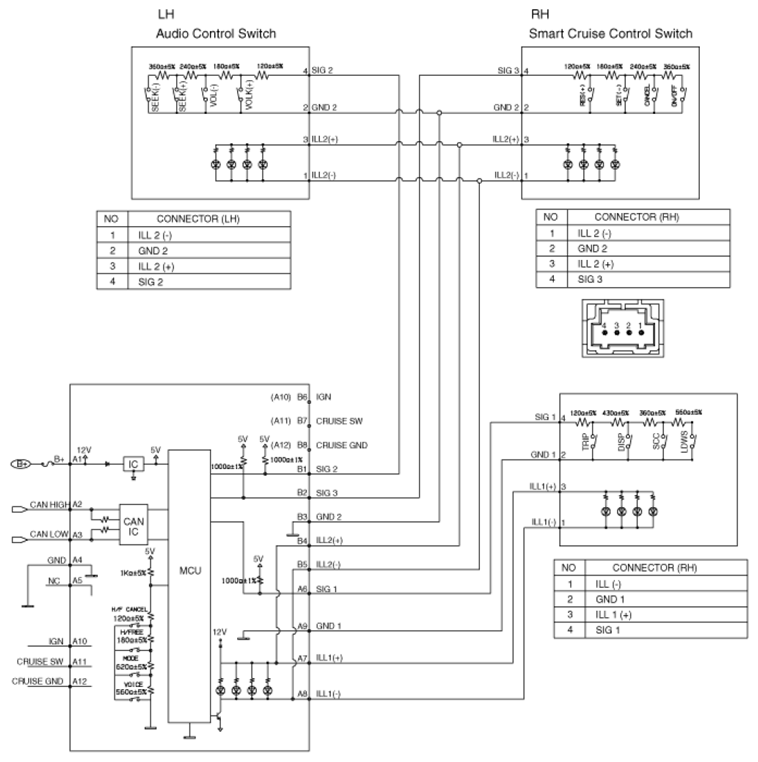

Home › Hyundai › 2011 › Equus Ultimate › Repair and Diagnosis › Accessories & Equipment › Cruise Control Systems › Smart Cruise Control System › Smart Cruise Control Switch › Schematic Diagrams › Circuit Diagram
