Driver Information System (Dis) Components
›
Keyboard unit
›
Components and Components Location
›
Component Location
Component Location

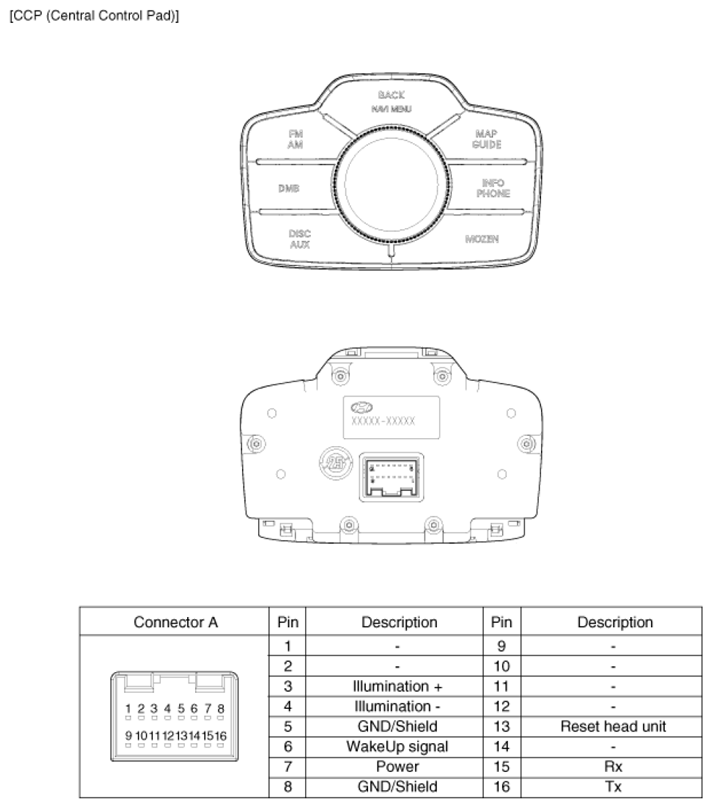

Fig 1: Identifying CCP Connector Pins
Courtesy of HYUNDAI MOTOR CO.

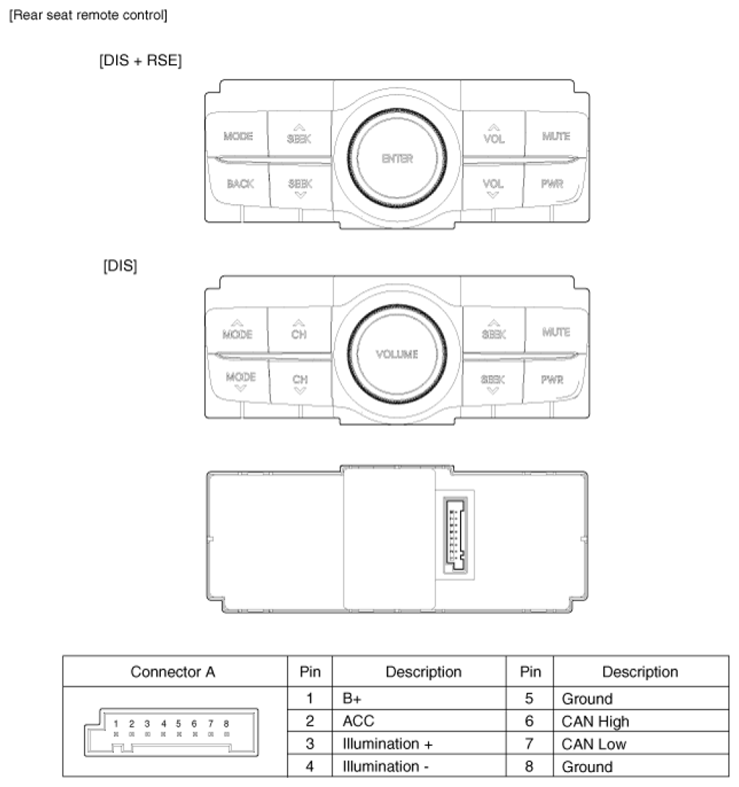

Fig 2: Identifying Rear Seat Remote Control Connector Pins
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
