Rear Seat Control: Notes

Disconnect the negative (-) battery terminal.
Remove the rear seat.
(Refer to "REAR SEAT ")
Remove the arm rest (A) from seat and disconnect the connectors (A).

Fig 1: Identifying Arm Rest
Courtesy of HYUNDAI MOTOR CO.

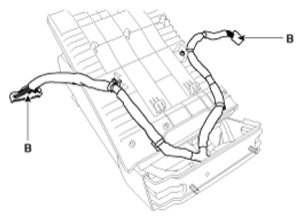

Fig 2: Identifying Arm Rest Connectors
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting screws to remove the arm rest cover.

Fig 3: Identifying Arm Rest Cover Mounting Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the rear seat remote control unit (A) after loosening the mounting screws.

Fig 4: Identifying Rear Seat Remote Control Unit Mounting Screws
Courtesy of HYUNDAI MOTOR CO.
