Exterior Body Panels
›
Power Trunk Module
›
Power Trunk Module Drive Unit
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

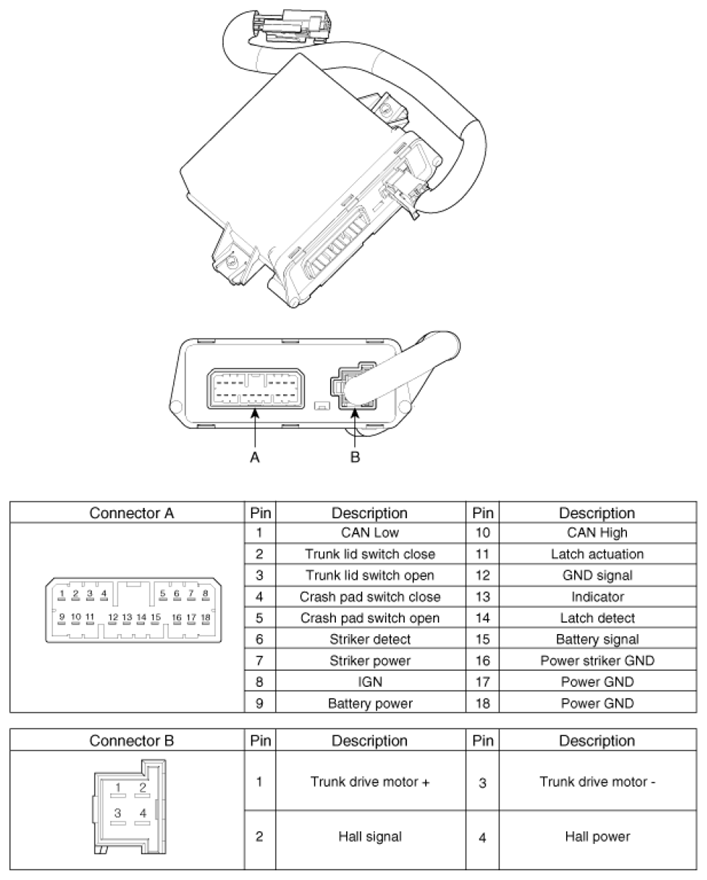

Fig 1: Identifying Power Trunk Module Drive Unit Connectors Pins
