Engine Control System Diagnosis (1 Of 3)
›
DTC P0150: O2 Sensor Circuit (Bank 2/Sensor 1)
›
General Information
›
Component Location
Component Location

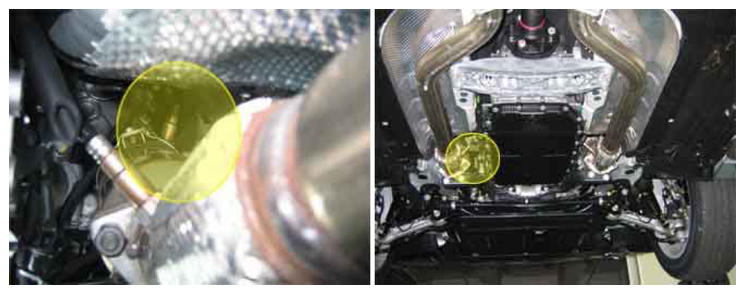

Fig 1: Identifying Heated Oxygen Sensor Location (Bank 2/Sensor 1)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
