Wiper Function Control

Inform wiper module current operation mode to Rain Sensor and transfer Rain sensor command to ECW via CAN network. The WiperControlFAM manages the Rain sensor communication.

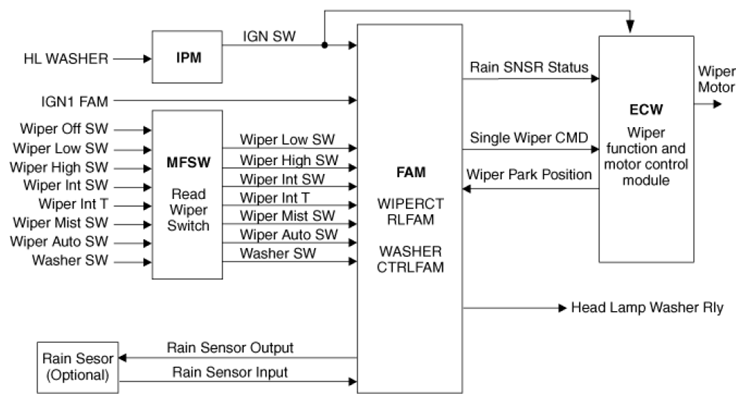

Fig 1: Wiper Function Control Communication Diagram

Courtesy of HYUNDAI MOTOR CO.
