Audio System: Components

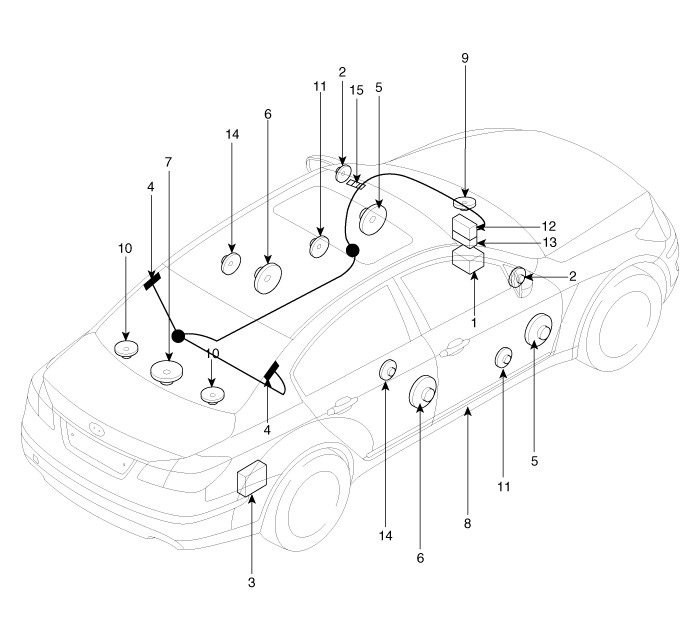

Fig 1: Locating Audio System Components

Courtesy of HYUNDAI MOTOR CO.

1. Audio head unit (Built-in bluetooth hand free unit) 2. Front tweeter speaker 3. External amp 4. Glass antenna amp (Radio) 5. Front door speaker 6. Rear door speaker 7. Sub woofer speaker 8. Antenna feeder cable

9. Crash pad center speaker 10. Surround speaker 11. Middle speaker 12. Monitor unit 13. Keyboard unit 14. Rear tweeter speaker 15. Hand free mic.
