Hyundai
›
2011
›
Genesis 3.8
›
Repair and Diagnosis
›
Accessories & Equipment
›
Memory Modules
›
IMS (Integrated Memory System)
›
Circuit Diagram
Circuit Diagram

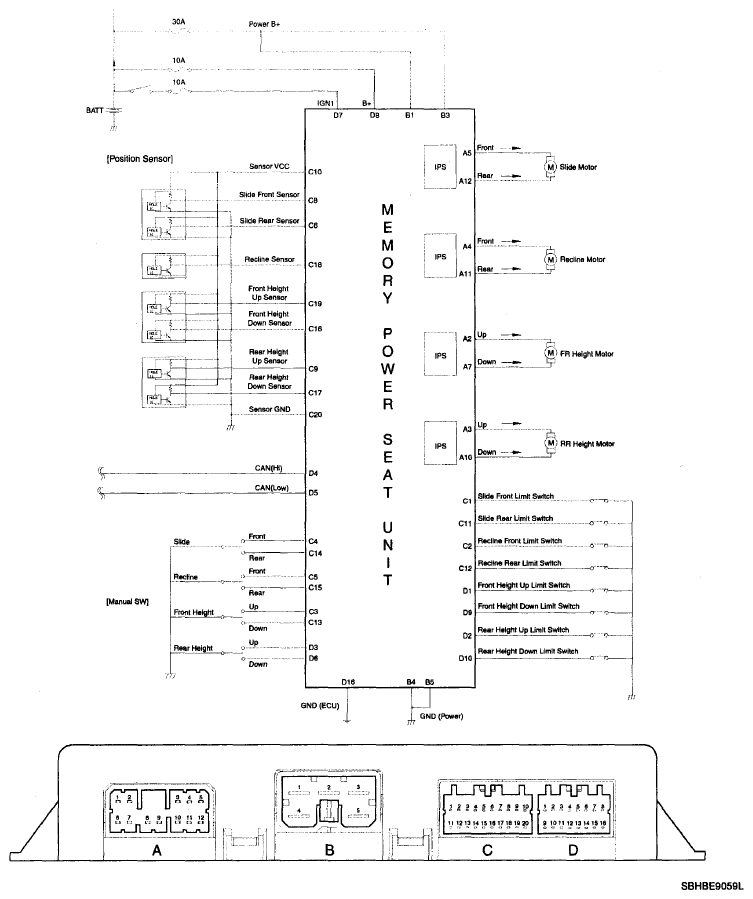

Fig 1: IMS (Integrated Memory System) - Circuit Diagram
