Genesis 3.8
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Smart Key System
›
Smart Key Unit
›
Circuit Diagram
Circuit Diagram

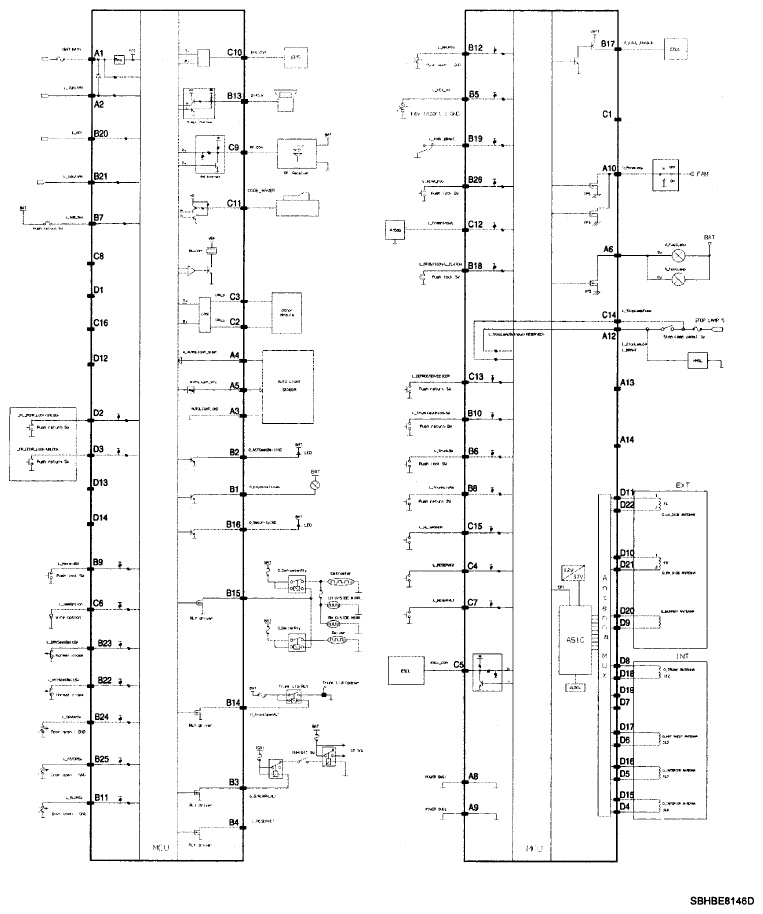

Fig 1: Smart Key Unit Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
