Projected Dimensions

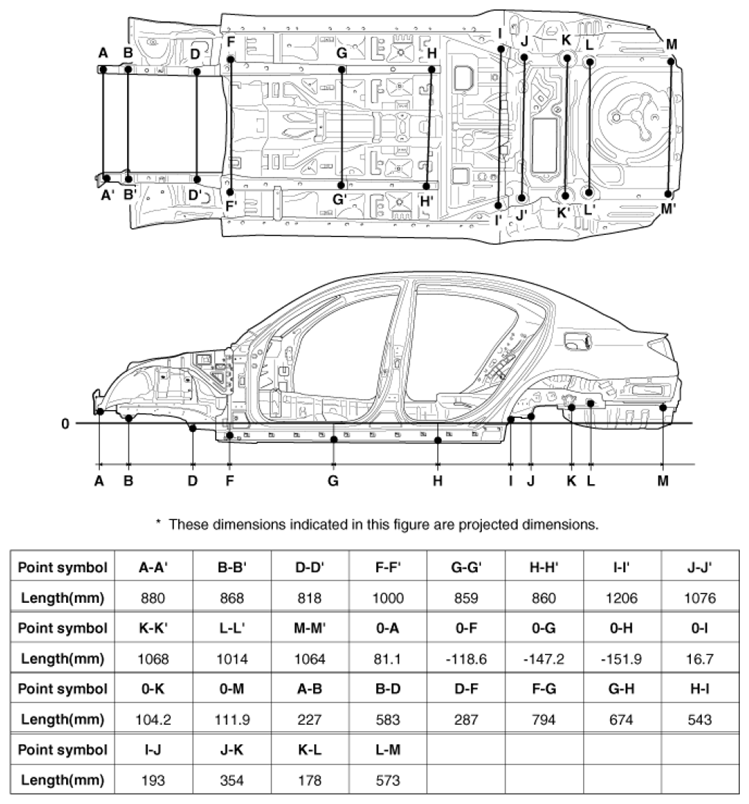

Fig 1: Identifying Under Body Projected Dimensions (1 Of 2)
G07302398Courtesy of HYUNDAI MOTOR CO.

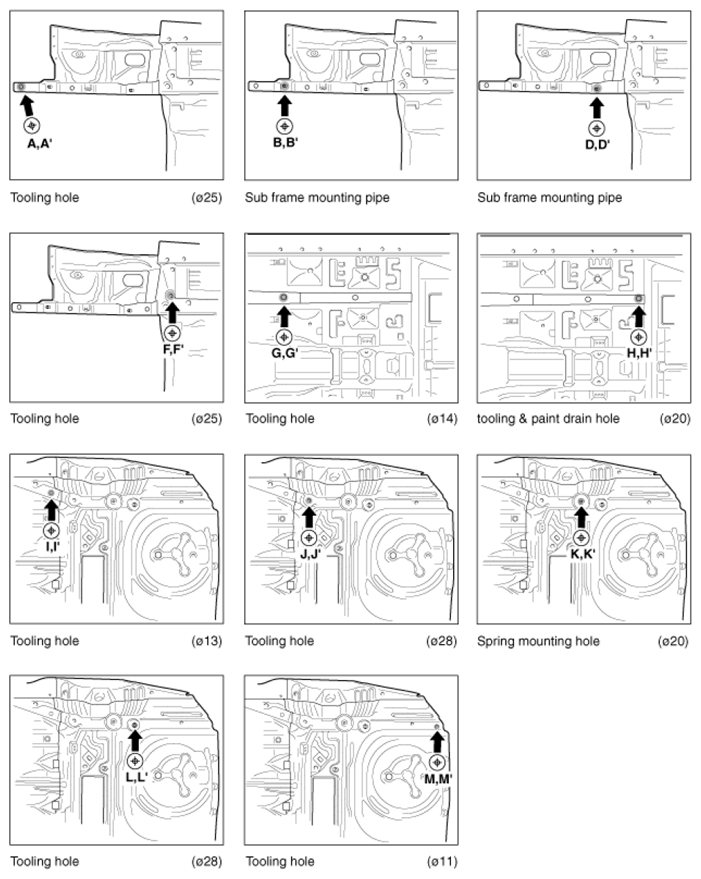

Fig 2: Identifying Under Body Projected Dimensions (2 Of 2)
G07302399Courtesy of HYUNDAI MOTOR CO.
