Button Engine Start System
›
Circuit Diagram
Circuit Diagram

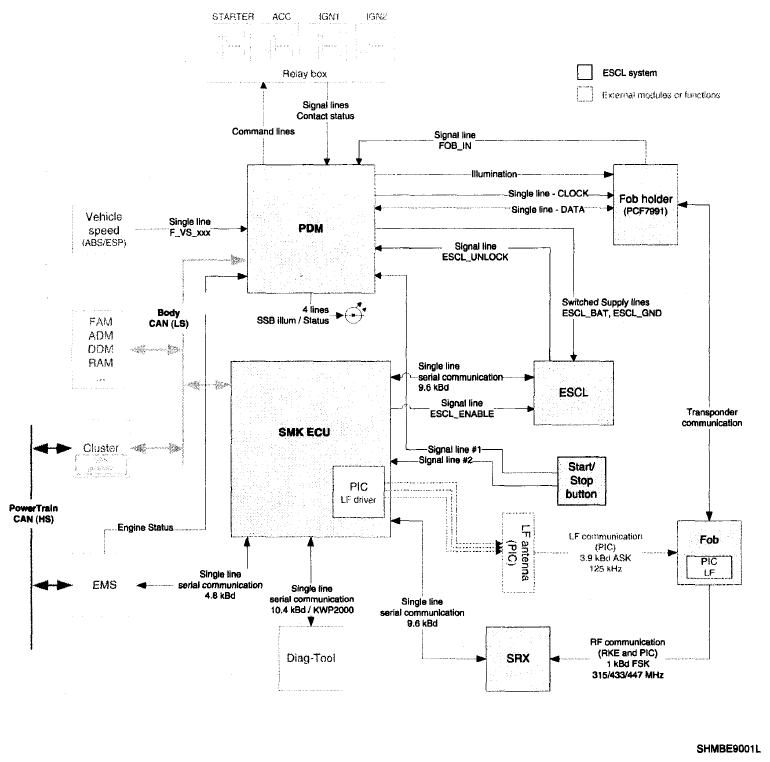

Fig 1: Button Engine Start System - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
