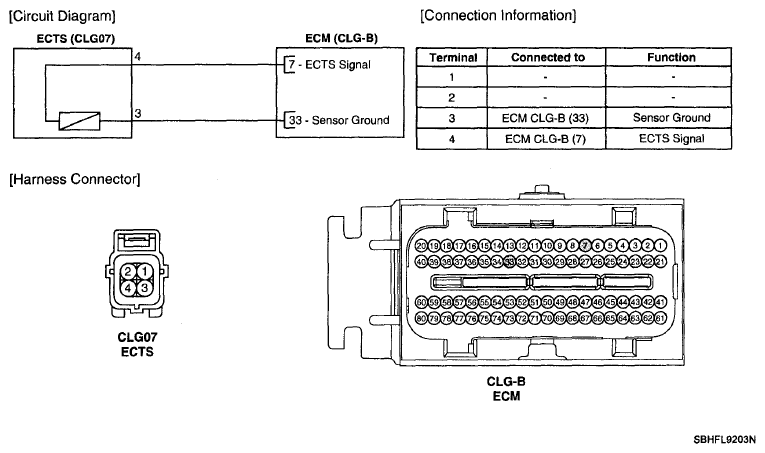

Home › Hyundai › 2011 › Genesis 3.8 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (Fuel System (G6DB/G6DA - GSL 3.3L/3.8L)) › Engine Coolant Temperature Sensor (ECTS) › Circuit Diagram
