Hyundai
›
2011
›
Genesis 3.8
›
Repair and Diagnosis
›
Restraints
›
Air Bag, SRS
›
Supplemental Restraint System Control Module
›
Circuit Diagram (2)
Circuit Diagram (2)

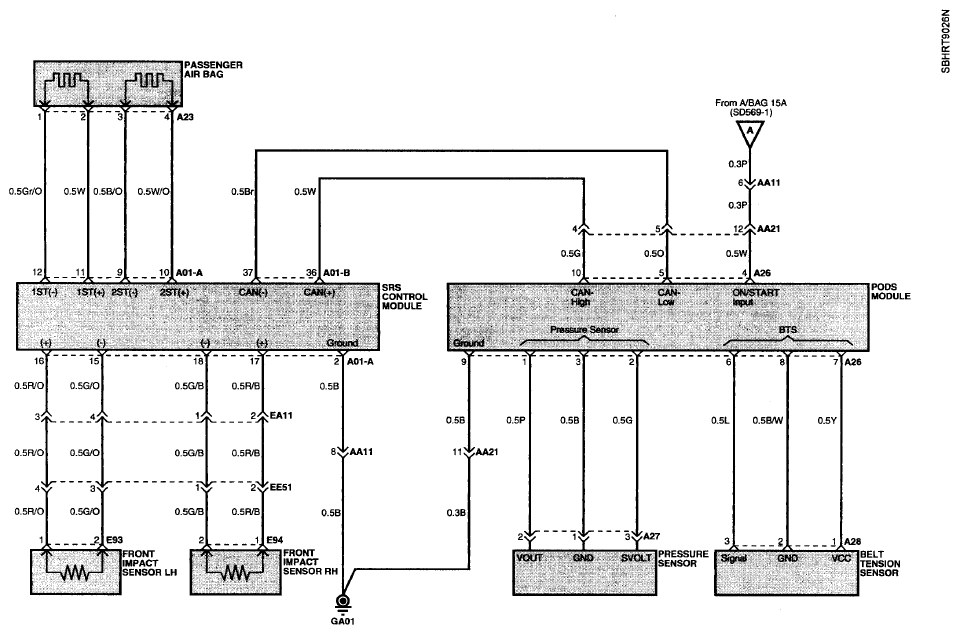

Fig 1: SRSCM - Circuit Diagram (2 Of 3)
