Supplemental Restraint System Control Module
›
Circuit Diagram (3)
Circuit Diagram (3)

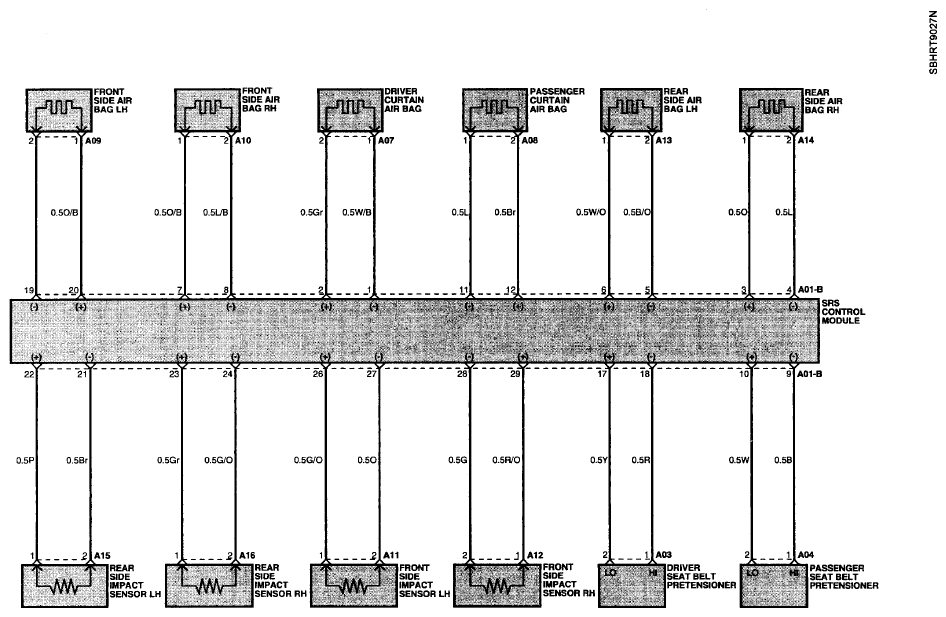

Fig 1: SRSCM - Circuit Diagram (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
