Pressure Side Impact Sensor
CAUTION:
- Removal of the airbag must be performed according to the precautions/procedures described previously.
- Before disconnecting the side impact sensor connector (s), disconnect the side airbag connector(s).
- Do not turn the ignition switch ON and do not connect the battery cable while replacing the side impact sensor.
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
- Remove the door trim. (Refer to REPLACEMENTS

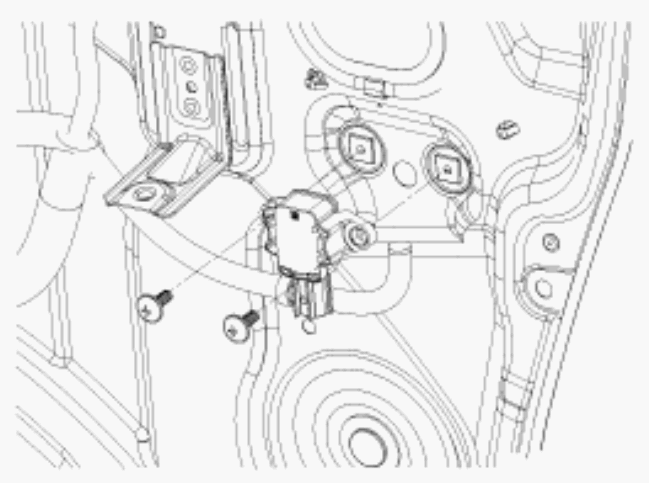

- Disconnect the side impact sensor connector and remove the pressure side impact sensor mounting screws.
