Door Outside Handle

Disconnect the negative (-) battery terminal.
Disconnect the connector after removing the door trim (A). (Refer to FRONT DOOR )

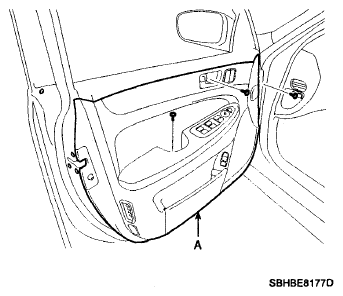

Fig 1: Identifying Door Trim
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting bolt, then remove the key holder (A).

Fig 2: Identifying Key Holder With Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the outside handle (A) by sliding it rearward.

Fig 3: Identifying Outside Handle
Courtesy of HYUNDAI MOTOR CO.
