Repair and Diagnosis: Electrical: Horns: Removal
Remove the front bumper. (Refer to
FRONT BUMPER
Remove the bolt and disconnect the horn connector, then remove the high pitch horn (B) and low pitch horn (A).

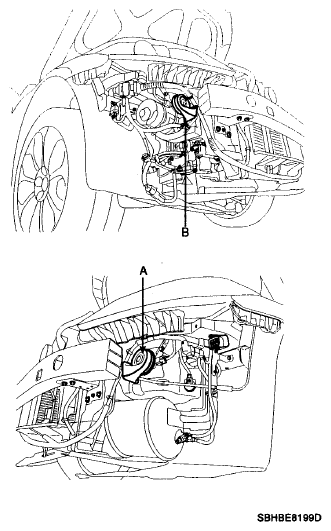

Fig 1: Identifying High Pitch Horn And Low Pitch Horn
Courtesy of HYUNDAI MOTOR CO.
