Fob Holder: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A). (Refer to "CRASH PAD ")

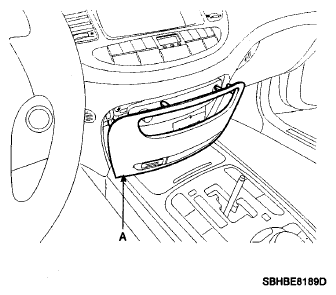

    Fig 1: Identifying Crash Pad Lower Panel
    G06103658Courtesy of HYUNDAI MOTOR CO.
  3. Remove the connector (A).

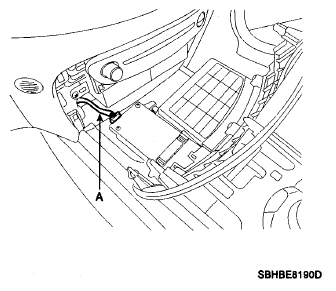

    Fig 2: Identifying Connector
    G06103659Courtesy of HYUNDAI MOTOR CO.
  4. Remove the Fob holder assembly (A) after loosening the mounting screw.
    Fig 3: Identifying Fob Holder Assembly
    G06103660Courtesy of HYUNDAI MOTOR CO.
