Home › Hyundai › 2011 › Genesis 4.6 › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › Start/Stop Button › Component

Start/Stop Button: Component

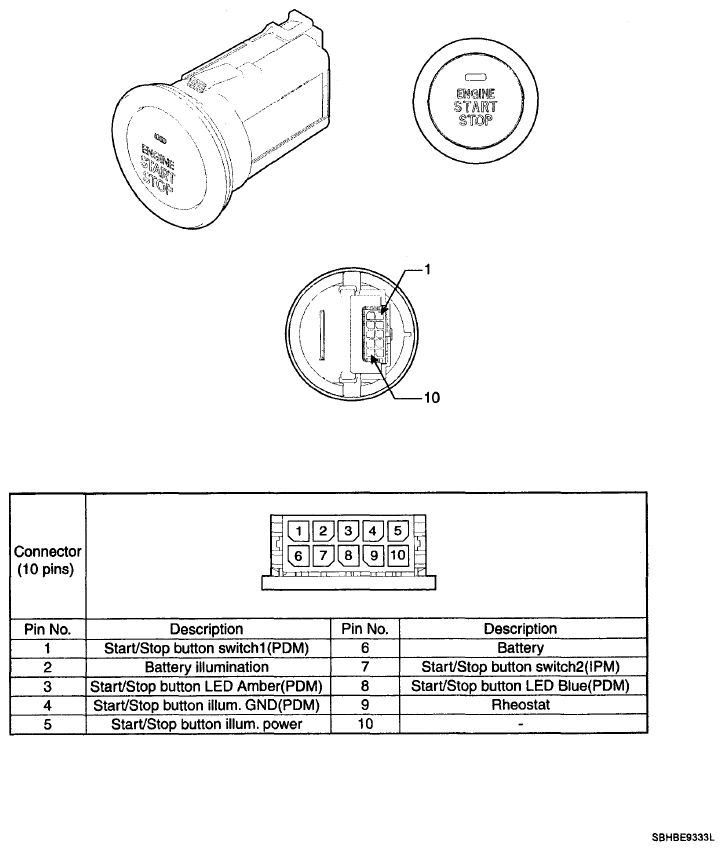

Fig 1: Identifying Start/Stop Button Components
G06103654Courtesy of HYUNDAI MOTOR CO.
