Wave Form

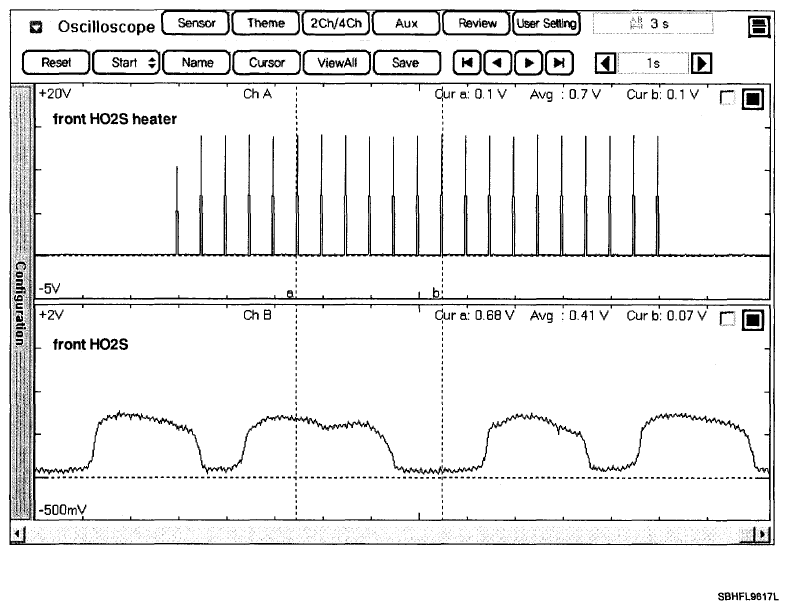

Fig 1: Signal Waveforms Of Front HO2S (Upper) And Heater (Lower) Idle
G06100448Courtesy of HYUNDAI MOTOR CO.

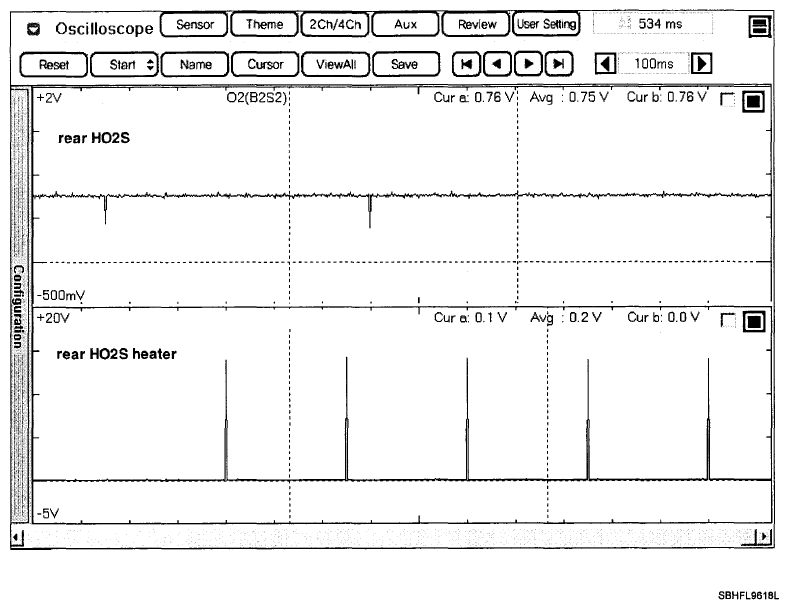

Fig 2: Signal Waveforms Of Rear HO2S (Upper) And Heater (Lower) Idle
G06100449Courtesy of HYUNDAI MOTOR CO.

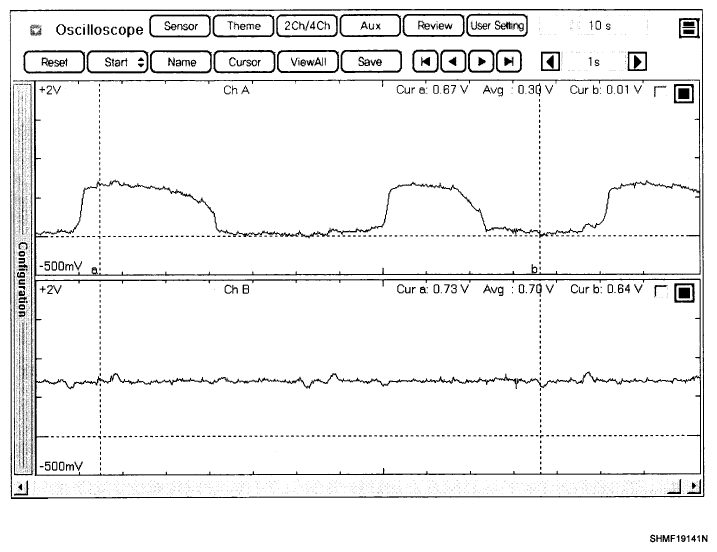

Fig 3: Typical Waveforms Of Front HO2S (Upper) And Rear HO2S (Lower)
G06106271Courtesy of HYUNDAI MOTOR CO.
