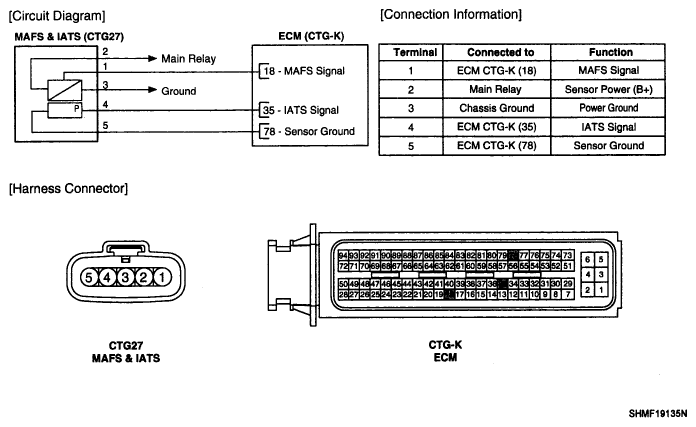

Home › Hyundai › 2011 › Genesis 4.6 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (Fuel System (G8BA - GSL 4.6L)) › Mass Air Flow Sensor (MAFS) › Circuit Diagram
