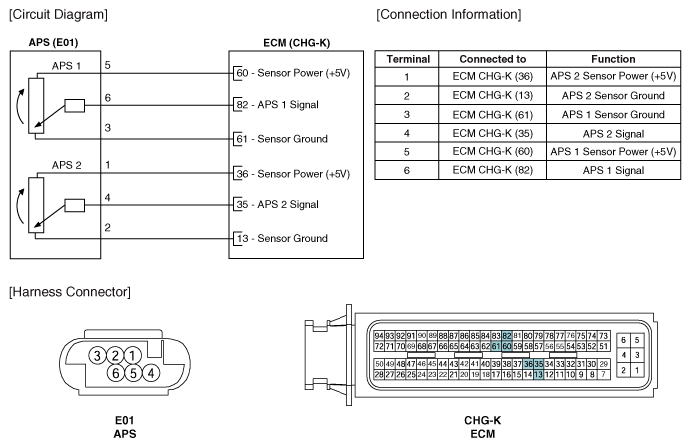

Home › Hyundai › 2011 › Genesis Coupe 2.0T, Automatic › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram
