Wave Form

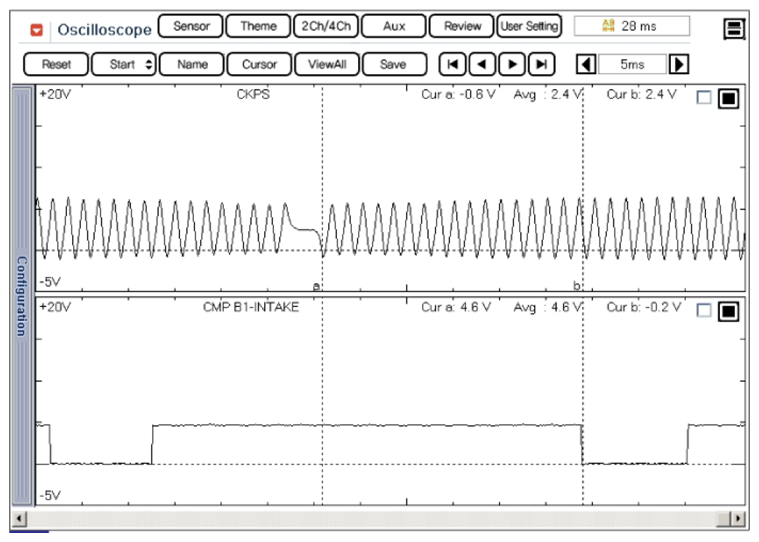

Fig 1: CKPS & CMPS - Waveform Graph (Normal Waveform)
G06511478Courtesy of HYUNDAI MOTOR CO.

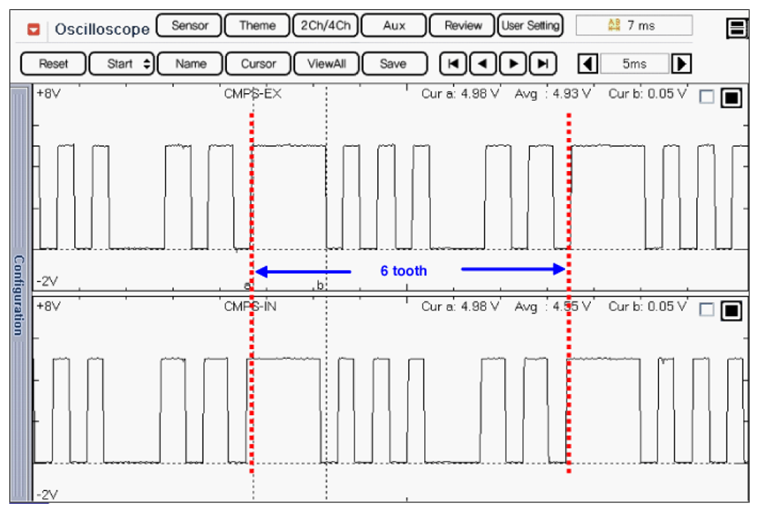

Fig 2: Camshaft Position Sensor - Waveform Graph (Normal Waveform)
G06511479Courtesy of HYUNDAI MOTOR CO.
