Engine Control System - 3.8L
›
Components and Component Locations
›
Components Location
Components Location

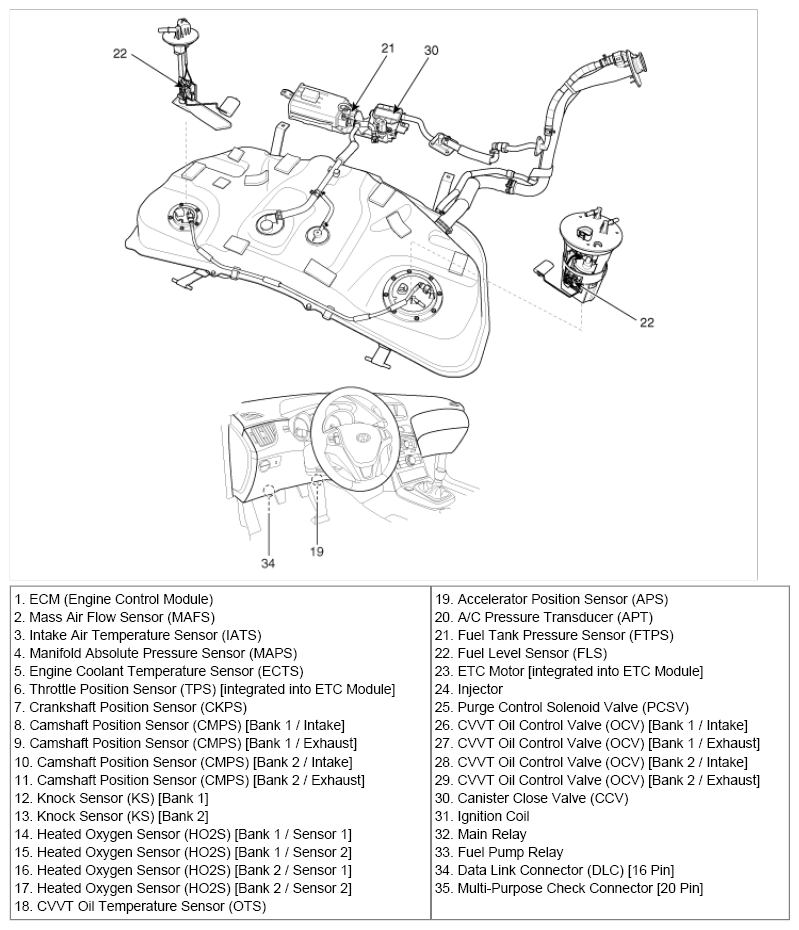

Fig 1: Locating Engine Control System Components (1 Of 5)
Courtesy of HYUNDAI MOTOR CO.

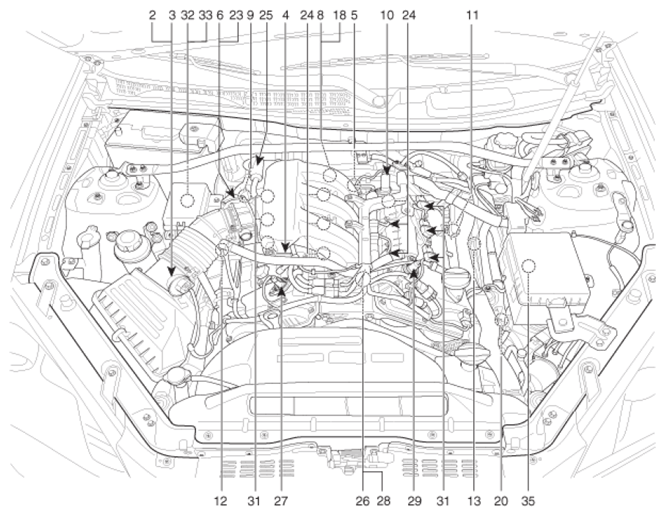

Fig 2: Locating Engine Control System Components (2 Of 5)
Courtesy of HYUNDAI MOTOR CO.

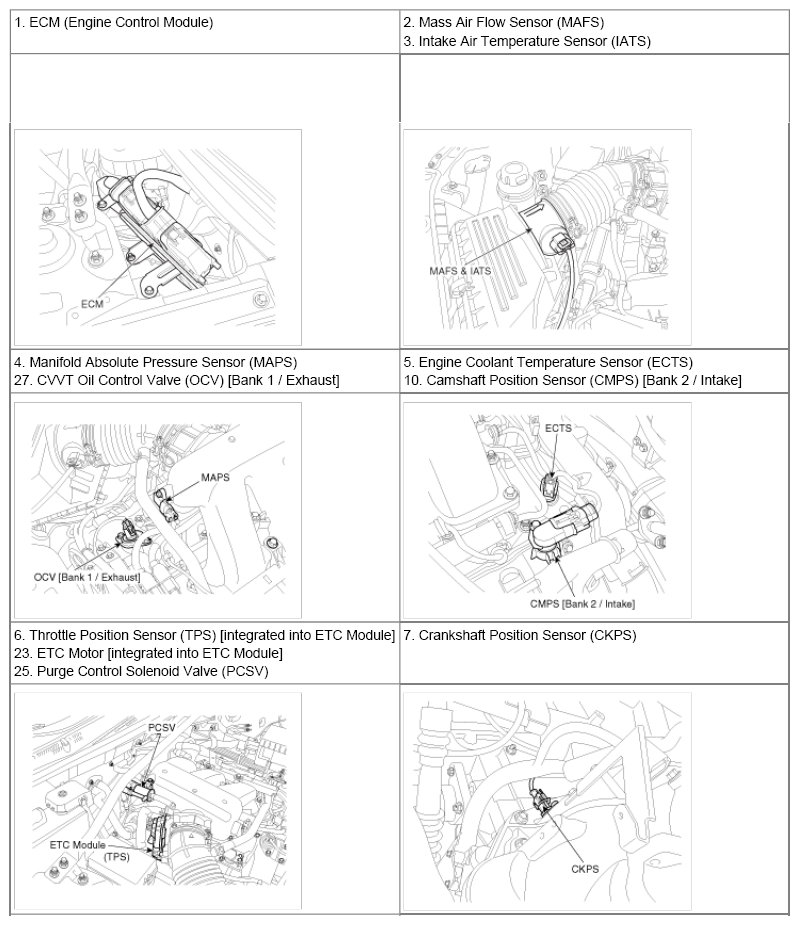

Fig 3: Locating Engine Control System Components (3 Of 5)
Courtesy of HYUNDAI MOTOR CO.

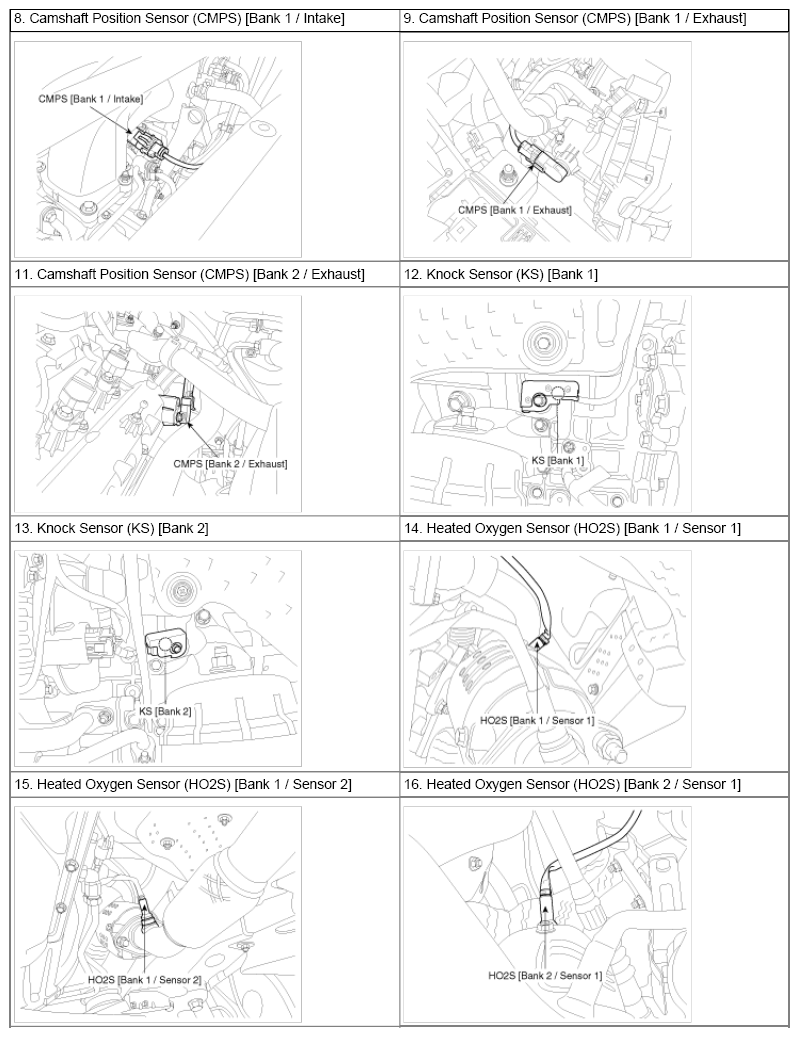

Fig 4: Locating Engine Control System Components (4 Of 5)
Courtesy of HYUNDAI MOTOR CO.

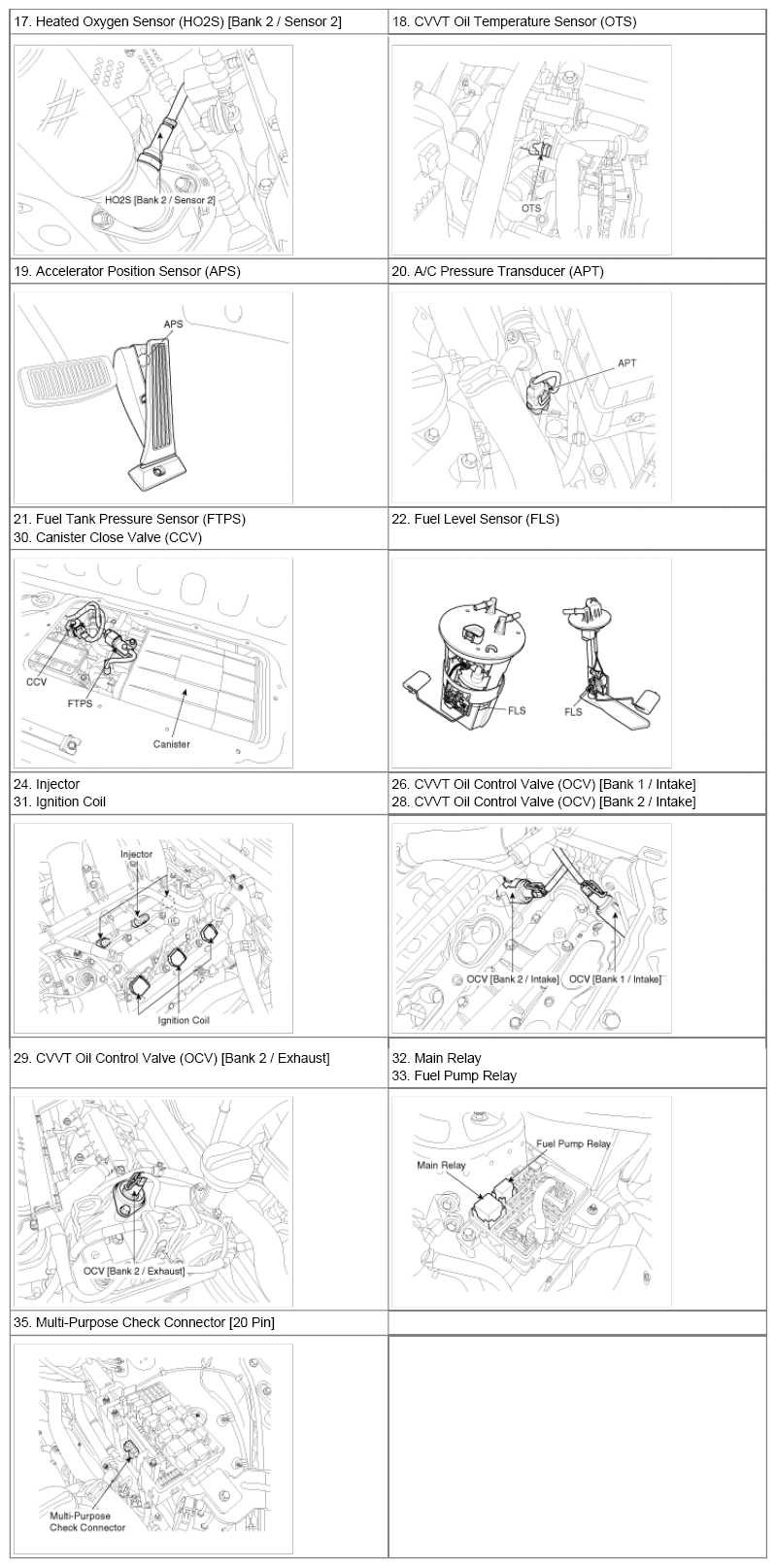

Fig 5: Locating Engine Control System Components (5 Of 5)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
