Repair procedures: Installation

Installation is the reverse of removal.
Move the slide clip (B) of guide member (A) in the direction as shown in the illustration.
NOTE: Adjust the slide clip fit into the select lever moving the slide clip in the direction.

Fig 1: Moving Slide Clip Over Guide Member
Courtesy of HYUNDAI MOTOR CO.

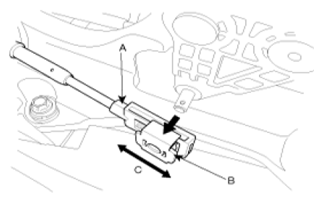

Install the guide member (A) of the select cable (B).

Fig 2: Identifying Guide Member And Select Cable
Courtesy of HYUNDAI MOTOR CO.

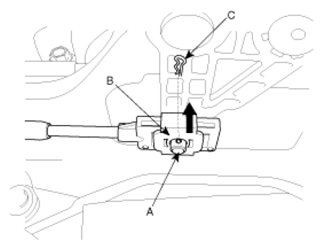

Adjust the slide clip (B) to fit it into the select lever pin (A) and install the snap pin (C).
NOTE: Insert the slide clip in the direction as shown in the illustration.

Fig 3: Inserting Slide Clip And Snap Pin
Courtesy of HYUNDAI MOTOR CO.
