Components Location

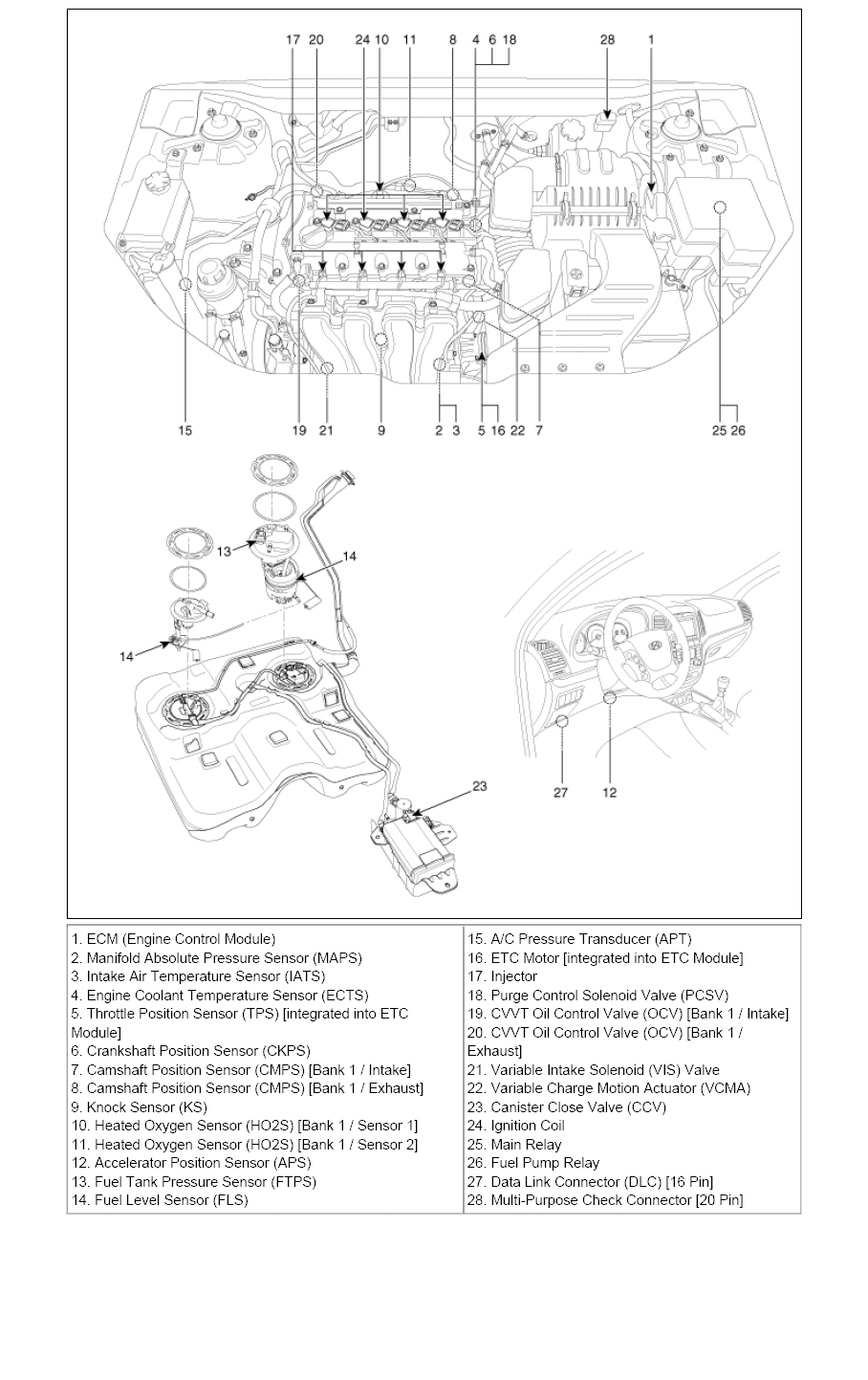

Fig 1: Identifying Engine Control System Components

Courtesy of HYUNDAI MOTOR CO.

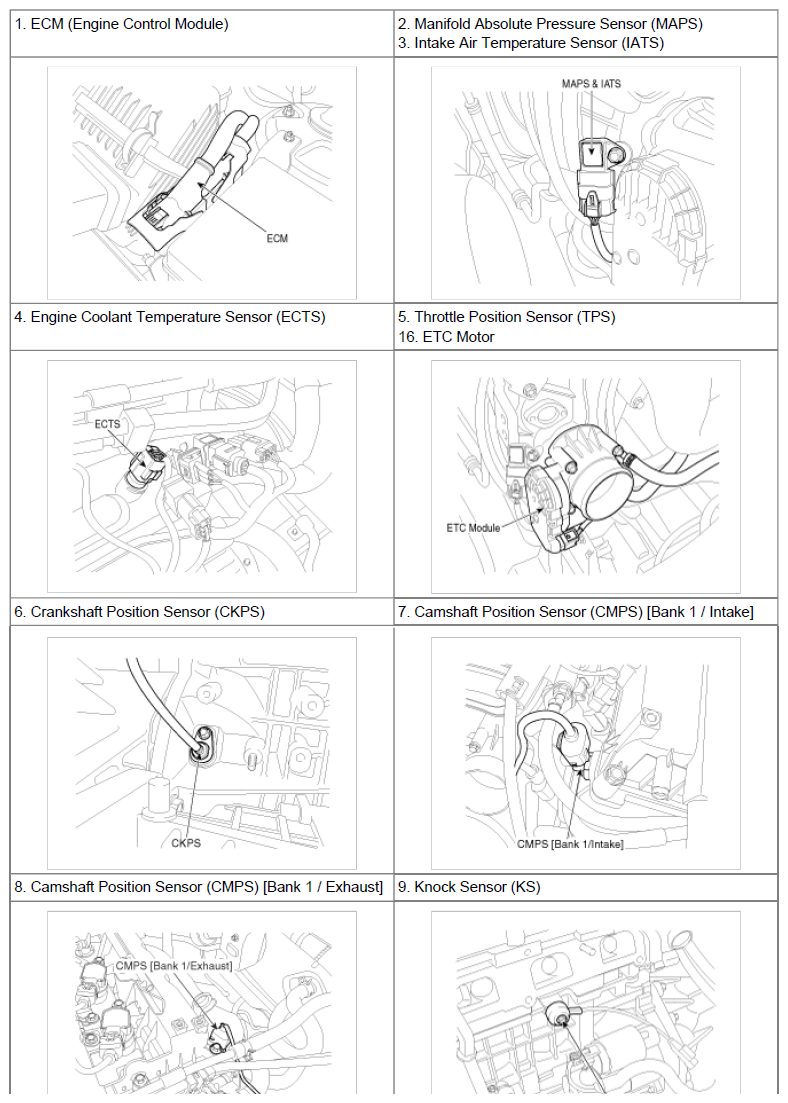

Fig 2: Identifying Engine Control Module

Courtesy of HYUNDAI MOTOR CO.

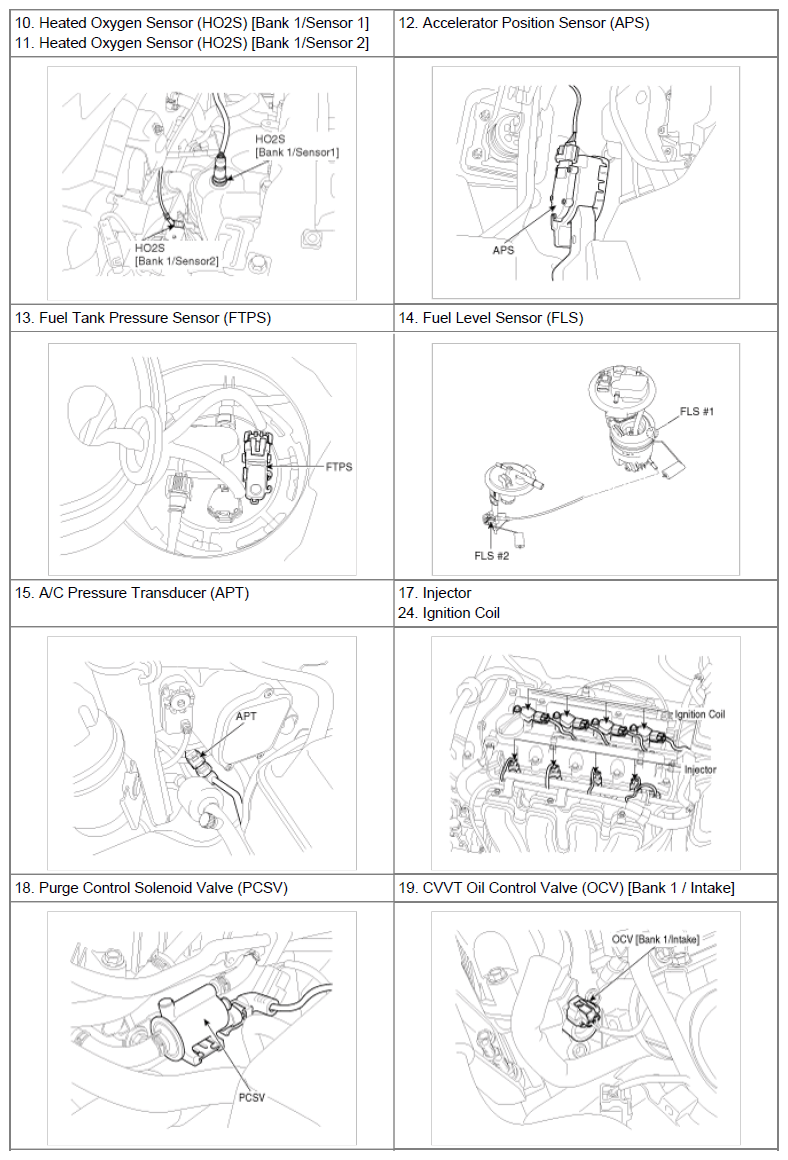

Fig 3: Identifying Engine Sensors

Courtesy of HYUNDAI MOTOR CO.

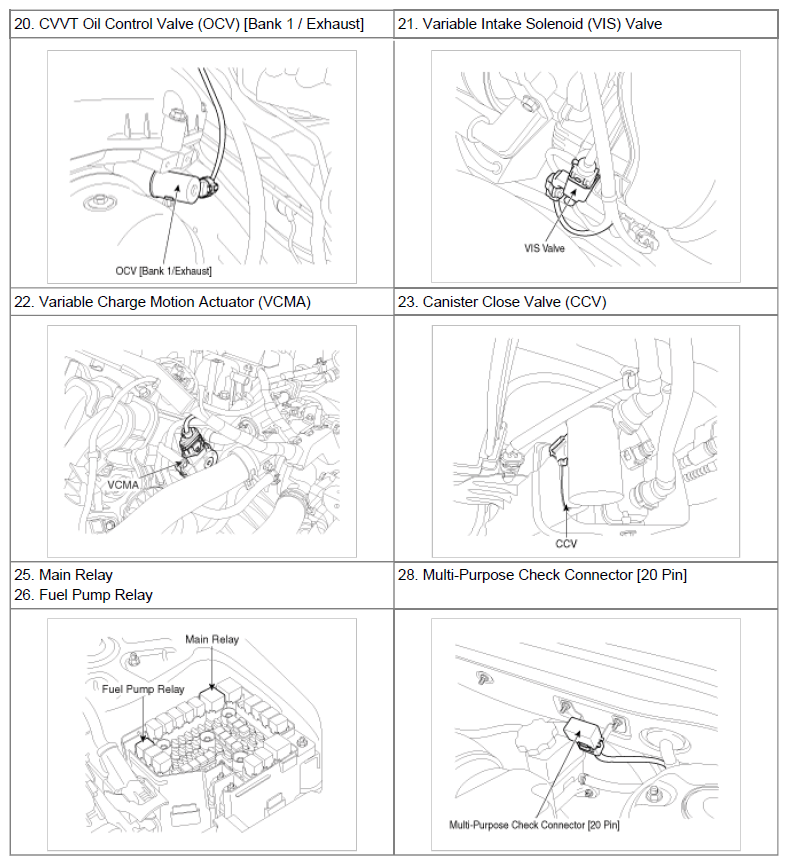

Fig 4: Identifying Engine Valve

Courtesy of HYUNDAI MOTOR CO.
