Repair procedures: Inspection

Fig 1: Identifying Ignition Switch Connector

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Identifying Key Warning Switch Connector

Courtesy of HYUNDAI MOTOR CO.

1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
2. Check for continuity between the terminals.
3. If continuity is not specified, replace the switch.

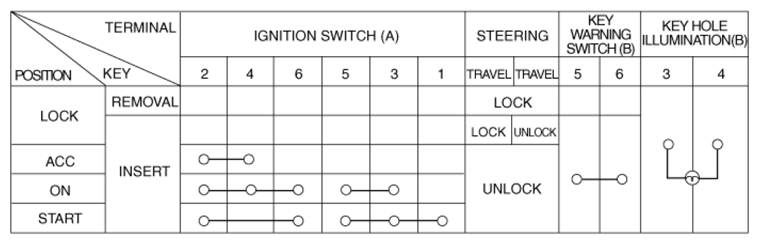

   Fig 3: Identifying Ignition And Key Warning Switch Connectors Terminal Continuity Chart

   Courtesy of HYUNDAI MOTOR CO.
